Viavi 1G DSP PRO

VI49419371V1
Viavi

Trilithic Maintenance Meter with RJ45 Electrical Ethernet & SFP Optical Ethernet Test Ports (10/100/1000 Mbps)

$3,995
Quantity

Description

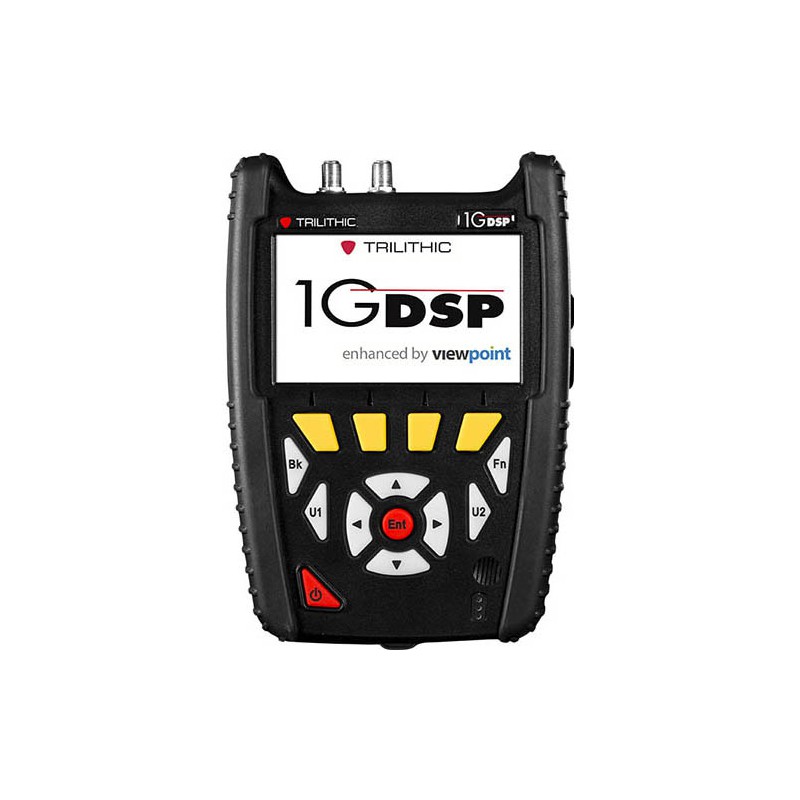

Viavi 1G DSP PRO Trilithic Maintenance Meter conveniently combines CATV, DOCSIS 3.1 Cable Modem, Gigabit Ethernet, and Optical testing - thereby eliminating the need for multiple instruments and saving capital expenses at the same time.

Designed to meet maintenance technician challenges, the 1G DSP meter has powerful troubleshooting tools for experienced techs, yet simplifies decision making and streamlines standard processes and procedures for the more novice tech. This results in more efficient technicians, greater overall system health, and allows techs to continue using the same meter as they become more experienced.

Viavi 1G DSP PRO can achieve throughput testing speeds of up to a gigabit/sec using a dedicated Ethernet test port or the internal cable modem.

Viavi 1G DSP PRO can perform either roundtrip or one-way Key Parameter Index (KPI) measurements for full Ethernet service testing. With constant payload testing for Layer 2 through Layer 4, the 1G DSP is built for verification of both Ethernet Service Level Agreement (SLA) and Quality of Service (QoS) metrics.

Viavi 1G DSP PRO features a large, high resolution, ultra-bright, color touchscreen interface, simple pass/fail indicators, and powerful autotest apps to streamline troubleshooting and make the technician's job easier. Everything about this next-gen meter was built with the technician in mind-from remote control of the meter via a web browser, to the long battery life, quick charge time, and glow in the dark keypad for those dark, cramped spaces. This meter also includes a visual fault locator (VFL) that makes it easy for the technician to locate and identify loss points in patch cords, patch panels, and enclosures.

Product Details
VI49419371V1
  • 1 - 1G DSP Signal Level Meter
  • 1 - Protective Carrying Case
  • 1 - Shoulder Strap
  • 1 - AC Power Cable (US)
  • 1 - AC to DC Power Adapter & Battery Charger
  • 1 - Touchscreen Stylus with Tether
  • 1 - Strand Hook
  • 1 - I-Stop Reverse Test Probe

Product Features:

  • Combines CATV, Gigabit Ethernet, and Optical testing in a single meter
  • Provides troubleshooting and maintenance for an entire HFC plant
  • 1 GbE SFP optical and electrical elthernet throughput testing
  • 802.11a/b/g/n (2.4/5 GHz) wireless testing
  • 650 nm VFL source with an operating power of 3 mW for locating loss points in patch cords, patch panels, and enclosuress
  • 1.25 GHz frequency measurement range
  • Auto-discovery of channel plans
  • Meters with DOCSIS 3.1 RF measurements and with cable modem service tests
  • Forward Spectrum Analysis feature enables users to view raw forward spectrum traces from 5 to 1250 MHz with DSP spectrum snapshots
  • Analog and Digital Hum feature enables users to measure the amplitude of 50/60 Hz, 100/120 Hz, and low frequency interference present on the video/QAM carrier of a single selected analog or digital channel
  • Large color touchscreen with high-resolution, ultra-bright display
  • Intuitive interface reduces installer entry errors and improves decision making
  • Provides multiple tests in single autotest app, conveniently standardizing tech processes and procedures
  • Equipped with powerful troubleshooting tools to improve overall system health
  • Meter can be controlled and monitored from PC, smart phone, or tablet
  • High-intensity LED flashlight and glow-in-the-dark keypad ideal for work in cramped, dark spaces

Applications:

  • Return spectrum analysis (4 to 110 MHz)
  • Level, C/N; QAM and OFDM measurement
  • Complete channel plan scan with tilt measurement
  • Advanced, yet simple testing and troubleshooting with channel plan auto discovery
