Description

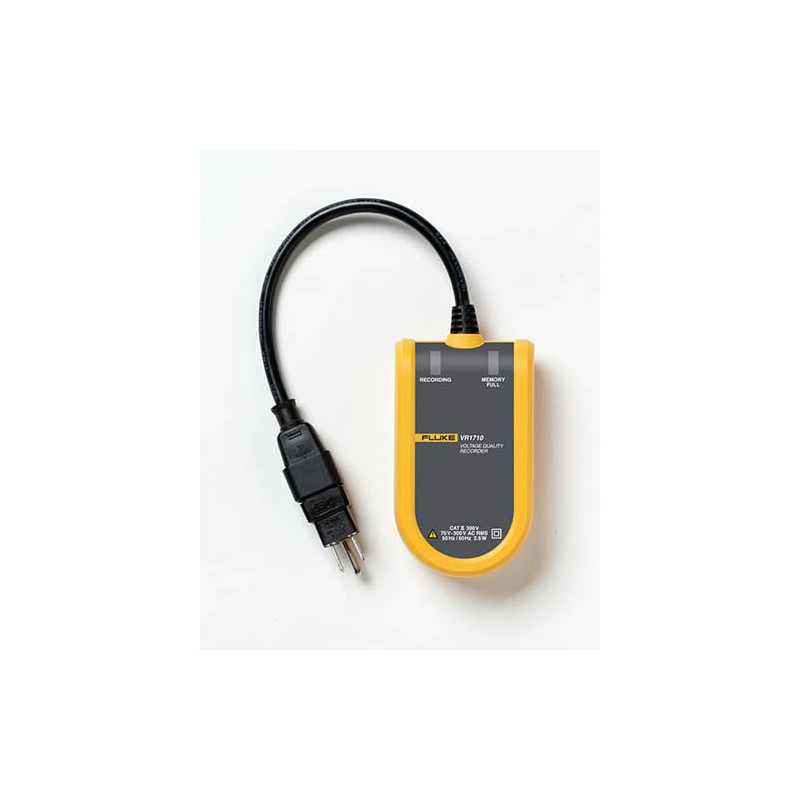

The Fluke VR1710 Single-Phase Plug-In Voltage Quality Recorder is an extremely easy-to-use solution for detecting and recording voltage quality problems, allowing for immediate action and less downtime. The VR1710 satisfies the needs of maintenance and facilities management personnel in industrial, utilities, and large service organizations where reliable voltage quality is essential to the operation of the business. Voltage quality parameters, including RMS average, transients, flicker, and harmonics up to the 32nd, are recorded with a user-selected average period from 3 seconds to 10 minutes.
Product Details
FL27375704FV
- 1 - USB Cable
- 1 - PowerLog Software
- 1 - Universal Power Cord Adapter Set
Product Features:
- Fast and easy recording of voltage trends, dropouts, and power quality
- Extremely easy to use, plug directly into mains power socket and record
- Continuous recording of all values with no gaps saves testing time by getting entire picture with single instrument
- Clear graphical summary of data and quick overview of key power quality parameters
- Min/Max/Average RMS values (1/4 cycle) with time stamps
- Actual transient display (>100μs) with time stamp
- Flicker according to EN 61000-4-15, individual harmonic and THD values with trends
- Statistical analysis of voltage events reduces analysis time by tracking event quantities and magnitudes
- Includes PowerLog software package for quick download, analysis, and automatic reporting; generate reports automatically with pre-set templates
Applications:
- Voltage recording
- Distortion measurement
- Flicker measurement
- Capture voltage transients
