Description

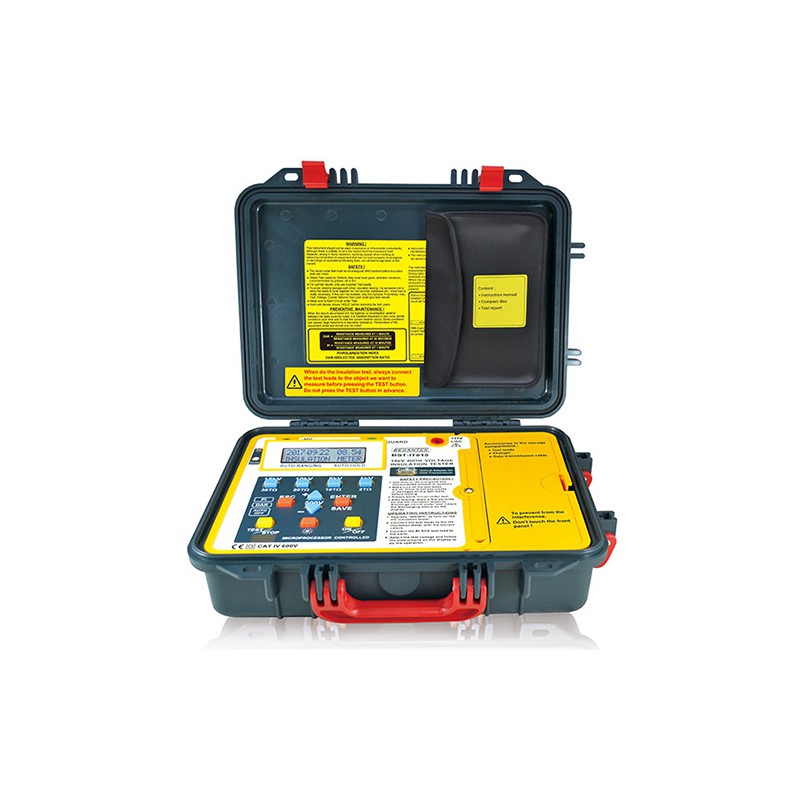

The BESANTEK BST-IT815 15kV High Voltage Insulation Tester is designed for testing the insulation resistance of cables, motors, generators, transformers, insulators, high-pressure switches, wiring installations, and more. A bargraph indicates test voltage, allowing rise and decay to be observed. Up to 200 measurement results can be saved in the memory and recalled on the display. The auto-hold function can be used to freeze the reading, while optical USB to RS-232 data transmission allows readings to be easily transferred to a PC.
Product Details
BE02451251BB
- 1 - Insulation Tester
- 1 - Set of Test Leads
- 1 - Charger
- 1 - Data Transmission Cable
- 1 - Test Report
- 1 - CD for PC Interface
- 1 - Manual
Product Features:
- Tests insulation resistance up to 30T Ohm
- Short-circuit current up to 5mA
- Microprocessor controlled for high accuracy
- Equipped with 30 insulation test voltages:
- 500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV, 6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV, 9.5kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 12.5kV, 13kV, 13.5kV, 14kV, 14.5kV, 15kV
- AC / DC voltmeter (600V)
- PI (Polarization Index) and DAR (Dielectric Absorption Ratio) indication
- Auto-ranging on all insulation ranges
- Backlight function for dark environments
- Bargraph indicates test voltage, allowing rise and decay to be observed
- Intuitive, menu driven interface
- Visual and audible warnings if external voltage is present (≥30Vac or ≥30Vdc)
- Auto-hold function freezes reading
- Overload protection
- Adjustment for testing time (duration): 1~30 minutes
- Auto-off and Calendar functions
- Optical USB to RS-232 data transmission
- Saves up to 200 measurement results in memory
- Tests results can easily be recalled on the display
- Protected to CAT IV 600V
