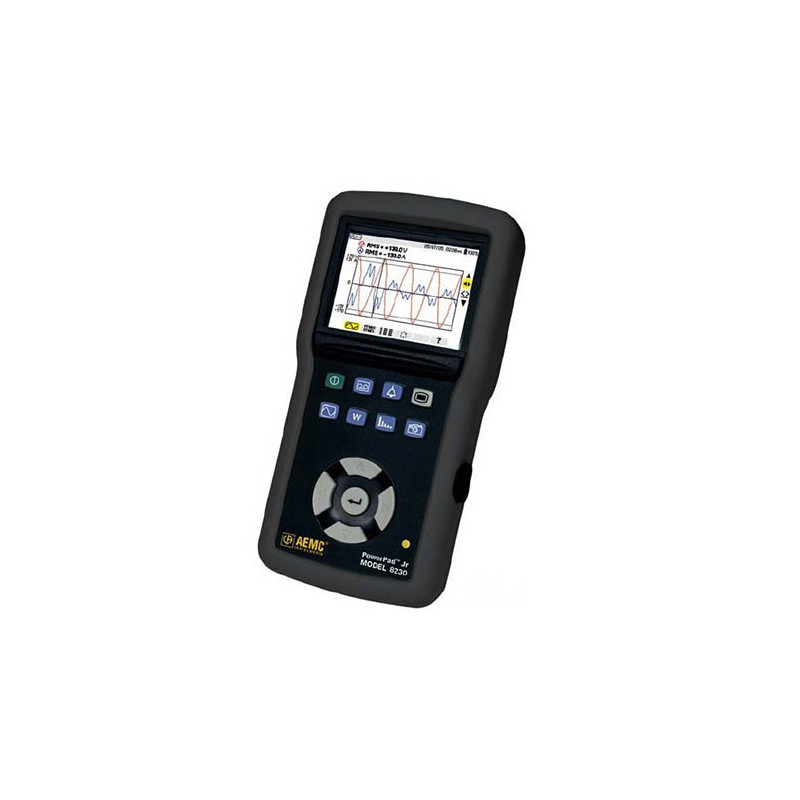

AEMC 8230

Product Features:

• Measures up to 660Vrms or VDC
• Measures up to 6500AAC or 1400ADC (probe dependent)
• Displays Min, Max and Average Volts and Amps, Crest Factor, Peak value and K-Factor
• Calculates and displays Watts, VARs and VA, Power Factor and
• Displacement Power Factor for single-phase and balanced three-phase
• Displays total harmonic distortion (THD-F and THD-R) for voltage and current
• Displays individual harmonic values and % for Volts and Amps through the 50th harmonic
• Stores up to eight screen captures
• Stores up to 1MB of trend recorded data
• Configurable from DataView software or front panel
• Captures, displays and stores inrush current waveforms and statistics
• Download stored data to DataView software via optical with isolated USB port
• Captures up to 4096 alarm events using up to 10 different thresholds
• Displays and records up to 17 different power quality parameters
• Includes software FREE.

Applications

• Motor start-up analysis
• Verification of power distribution circuits
• Measurement and recording of power system quality (kW, VA, VAR)
• Energy metering (kVAh, VARh, kWh)
• In-plant troubleshooting of power distribution panels and individual machinery
• Determine harmonic problems originating from source or load
