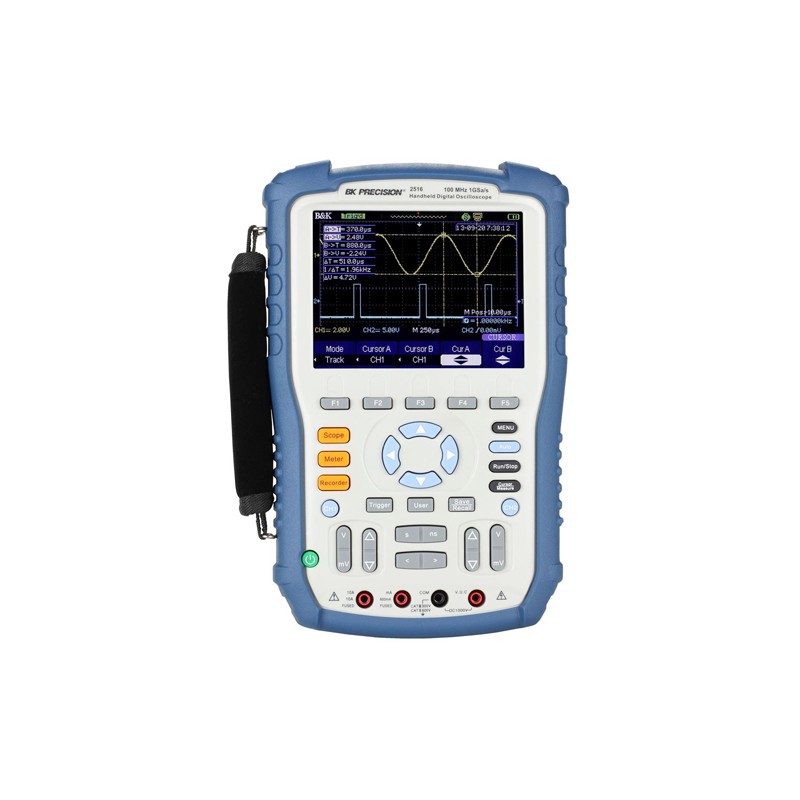

BK Precision 2516
BP49449931BP
100 MHz, 2-Channel (Isolated), 1 GSa/s Handheld Digital Storage Oscilloscope
Description
The BK Precision 2516 100 MHz, 2-Channel (Isolated), 1 GSa/s Handheld Digital Storage Oscilloscope provides floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. This versatile 100 MHz bandwidth scope offers 1 GSa/s sample rates, 2 Mpts waveform memory, 32 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior.
The built-in 6000-count multimeter allows users to quickly switch over from an oscilloscope to a DMM to measure DC/AC voltage and current, resistance, and capacitance, including diode and continuity tests.
The 2516 handheld scope features many useful recording functions such as trend plot, which allows data logging from the scope or multimeter. Additionally, the scope recorder function offers users 7 Mpts record length on a single channel or 3.5 Mpts on dual channel.
Product Details
BP49449931BP
- 2 - Passive Probes
- 1 - Pair of Digital Multimeter Test Leads
- 1 - 7.4 V Li-ion Battery (BP2510)
- 1 - USB Cable
- 1 - Probe Compensation Connector
- 1 - AC Power Adapter
- 1 - Travel Case (LC2510B)
- 1 - Certificate of Calibration
- 1 - User Manual
Product Features:
- 100 MHz bandwidth
- 1 GSa/s sample rate
- Deep waveform memory up to 2 Mpts
- 2 fully isolated and floating 1,000 V CAT II, 600 V CAT III rated inputs
- Built-in 6000-count Digital Multimeter with dedicated terminals for current measurement
- Scope and meter trend plot functions for data logging
- Bright 5.7 in. color display
- Compact and lightweight
- FFT including four additional math functions: Add, Subtract, Multiply, and Divide
- 32 automatic measurements
- USB host port for saving and recalling waveform setups, data, and screenshots on USB flash drive
- Software provided for remote PC control
- Advanced tools include digital filters with adjustable limits, scope and waveform recorder mode
- Multi-language user interface
- 7.4 V Li-ion battery (included)
- Up to four hours of continuous battery operation
Applications
- Industrial
- Power Systems
- Electronics Design
- Field test and service
