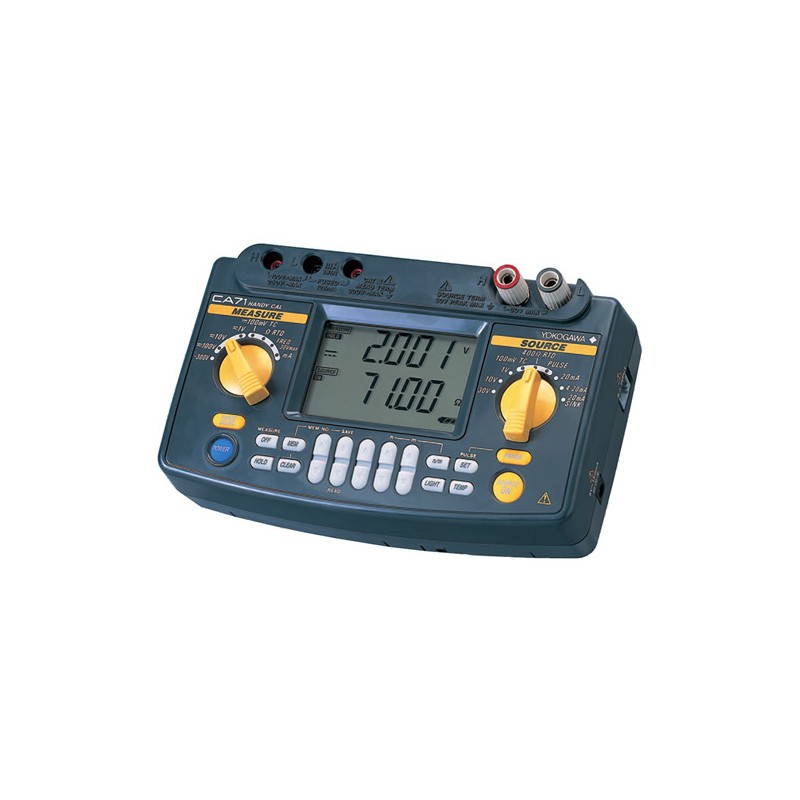

Yokogawa CA71

Product Features:

• Source and measure operations can be performed simultaneously
• Source signal and measurement signal options: voltage, current, resistance, thermocouple (TC), resistance temperature detector (RTD), frequency, pulse
• AC voltages, including supply voltage, can be measured
• Includes wide array of additional functions
• Easy operation
• Compact and lightweight
• Auto-Step Output Function: n value sent automatically when n/m function selection is selected (two options: approximately 2.5 seconds/step or approximately 5 seconds/step)
• Sweep Functions: Sweep time (two options: approximately 16 seconds or approximately 32 seconds)
• Memory Function: 50 value sets (generated and measured values are stored as value sets with the same address (up to 50 value sets can be stored))
• Measuring Unit Maximum Input: Voltage terminal: 300 VAC Current terminal: 120 mA DC
• Current Terminal Input Protection: Fuses: 125 mA/250 V
• Measuring Unit Ground Voltage: Maximum 300 VAC
• Measurement Display Updating Rate: Approximately once per second
• Serial Interface: Enabled when communication cable (RS232) is connected (sold separately)
• Display Segmented: LCD (Approx. 76 mm × 48 mm)
• Backlight: LED backlight; auto-off after one minute (from when LIGHT key is turned on)
• Power Supply: Four AA alkaline batteries, or special AC adapter (sold separately)
• Auto-Power-Off Function: Approx. 10 minutes (auto-power-off can be disabled through a DIP switch setting)
• Applicable Standard: EN55011: 1998, Class B, Group 1; EN61326-1: 1997 + A1: 1998; IEC61010-1, IEC61010-2-31
• Insulation Resistance: Across input terminal and output terminal, 500 V DC, 50 MO or greater
• Withstand Voltage: Across input terminal and output terminal, 3.7 kVAC, for one minute
• Operating Temperature And Humidity Ranges: 0 - 50°C, 20 - 80% RH (no condensation)
