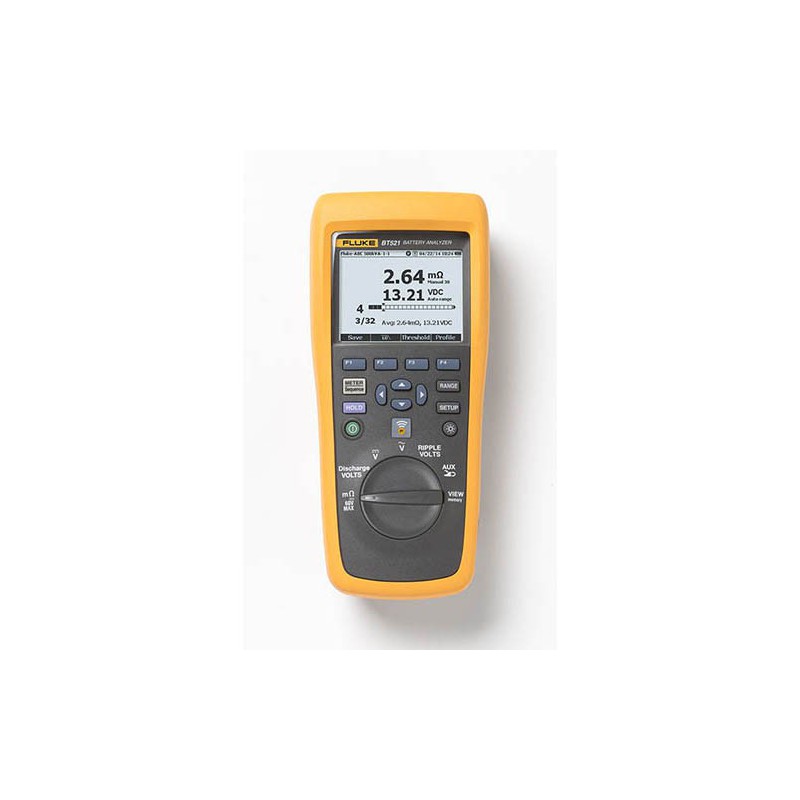

Fluke BT521ANG

The Fluke BT521ANG Advanced Battery Analyzer with Angled (No Temperature Sensor) and Straight (with Temperature Sensor) Test Probes is the ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery backup applications. The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability. Fluke BT521ANG covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using an automated string function testing and the test probe integrated infra-red temperature measurement system. The BT521ANG 500 Series Battery Analyzer is designed for measurements on stationary batteries of all types.

• Quick, guided setup ensures you are capturing correct data every time
• Combined visual and audio feedback cues reduce risk of measurement confusion
• Configure multiple reference values and thresholds for resistance and voltage
• Comparison feedback results after each measurement via visual and verbal cues
• Ergonomic test leads have rugged, coaxial, two-pole kelvin test pins with remote SAVE button to reduce test time and increase efficiency
• Test probe extenders for long reach, straight and angled probes for double stacked cells
• Intelligent test probe set: Integrated LCD display, infrared temperature measurement, verbal audio feedback and captures voltage readings and temperature logging automatically or via integrated
• save button
• Measures resistance of intercell connection between batteries in given string
• Enhanced data analysis lets you quickly compare trends, analyze results and create reports with included battery management software
• Internal battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and temperature
• Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature, eliminating the need to press a button each time a measurement needs to be saved
• All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis
• Generate PDF reports on PC software with analysis graphics and data table or quick email format report with csv file on mobile app
• Wireless communication for data download and remote display while measuring
• Browse and email measurement data via iOS app
• Battery life: 7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation
• USB port: For fast data download to supplied data analysis and report management application software
• CAT III 600 V, 1000 V dc max. rated for safe measurements all around battery power supply equipment
• Fluke Battery Management Software
  • Quick view saved readings
  • Profile management
  • Histogram of battery string with end user defined threshold
  • Historical trend data of batteries
  • Multiple rounds of discharge voltage
  • Quick Report Generation
  • Upgrade Fluke Battery Analyzer firmware
  • Switch measurement results between conductance and resistance readings
• Fluke Battery Analyze Mobile App
  • Browse profile
  • Review sequence testing data
  • E-mail sequence testing data
