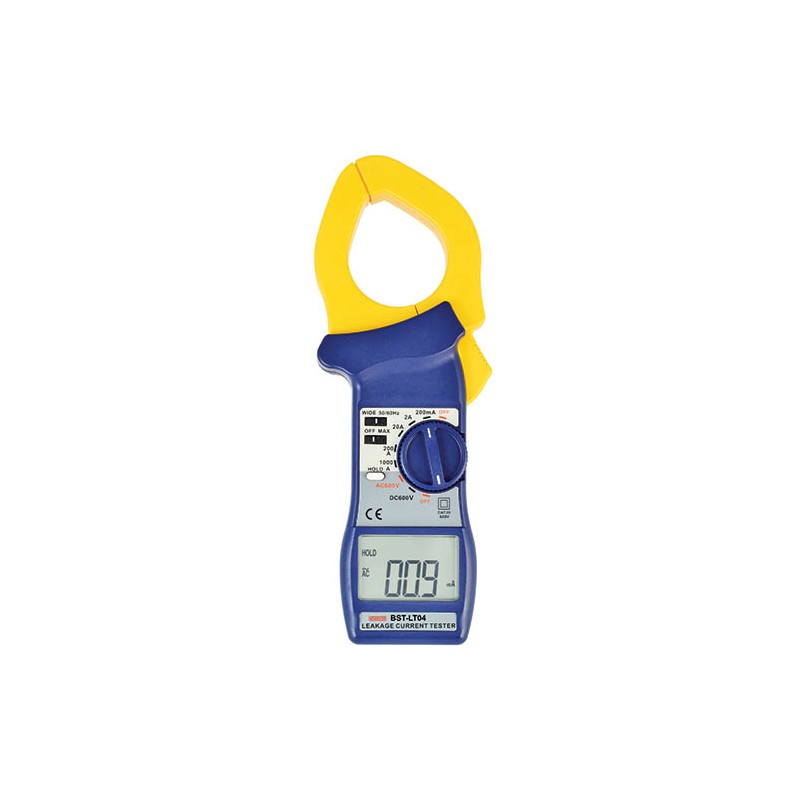

Besantek BST-LT04

Key Features:

• Designed for testing AC current and AC voltage.
• AC current testing has 5 ranges.
• The minimum resolution of leakage current is 0.1mA.
• Frequency selection: 50/60 Hz and wide.
• Data hold function.
• Maximum reading.
• Low battery indication.

Technical Specifications:

• AC current ranges: 200mA(0~199.9mA), 2A(0~1.999A), 20A(0~19.99A)/200A(0~199.9A)/0-500A/501-1000A.
• AC current accuracy(50/60HZ): ±(1.5% rdg+2dgt), ±(2.0% rdg+2dgt), ±(2.0% rdg+2dgt),±5.5% rdg.
• AC current accuracy(wide): 40/1000Hz: ±(3.0% rdg+2dgt), 40/1000Hz: ±(3.5% rdg+2dgt), 40/1000Hz: ±(3.5% rdg+2dgt), 40/1000Hz: ±10% rdg
• AC voltage ranges: AC600V / DC600V.
• AC voltage resolution:1V / 1V
• AC voltage accuracy: ±(1.5% rdg+3dgt), ±(1.0% rdg+2dgt).
• General:
• Conductor size: 55mm Max.
• Operating principle: Dual slope integration.
• Display: 3½ digit (2000 count)
• Low battery indication
• Overload Protection: AC600V / DC600V.
• Data hold indication.
• Response time: approx./ 1 second.
• Sample rate: approx. 2 times per second.
• Temperature & humidity for guaranteed: 0°C to 50 °C at <80% Max. relative humidity.
• Storage temperature & humidity: -10 °C to 60 °C at <80% Max. relative humidity.
• Battery life: approx. 100 hours on continuous use(Alkaline).
• Dimensions: 260(L) x 95(w) x 43(D) mm.
• Weight ( battery included): Approx. 540g.
• Power source: 9v(5F22) x 1.
• Safety standard: EN 61010-1 CAT III 600V
• EN 61010-2-32
• EN 61326-1.
• Accessories: Instruction manual, Test leads, Soft pouch, Battery.
