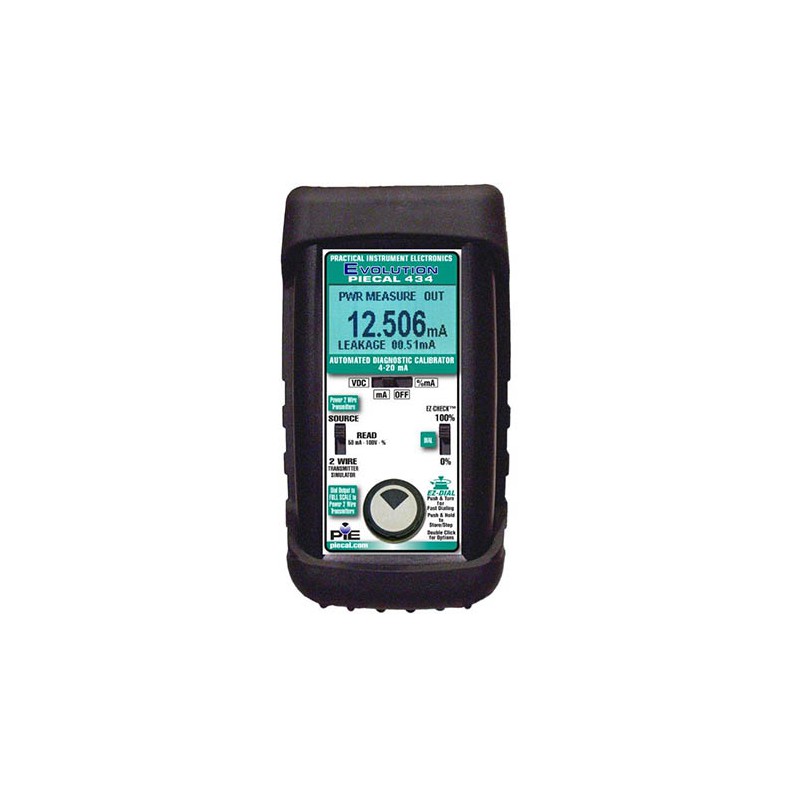

PIE 434

Product Features:

• Calibrate milliamp instruments
• Source 0.000 to 24.000 mA & -25.00 to 125.00% of 4-20 mA
• Read 0.000 to 52.000 mA, -99.99 to 99.99 V
• Simulate 2-wire transmitters
• Power & read 2-wire transmitters
• Menu selectable 250 W resistor for HART compatibility
• Calibrate with confidence
• Accurate to ±0.025% of span at 4.000 & 20.000 EZ-CHECK outputs
• Easy-to-read display
• Turn on the backlight to read in dark areas of the plant
• Locate loop current leakages
• Automatic indication of loop current and leakage current. Measure ground current leakage from faulty wiring, flooded conduit and corrosion bridges. Leakage appears as a zero shift and helps you decide if the transmitter needs calibration or if there is some problem in the loop wiring.
• Faster calibrations
• Instantly select three outputs with EZ-CHECK switch and easily find trip points with two speed EZ-DIAL plus automatic stepping & ramping
• Functional replacement for the Altek 434
