Hioki MR8875 from Hioki
  • Hioki MR8875 from Hioki

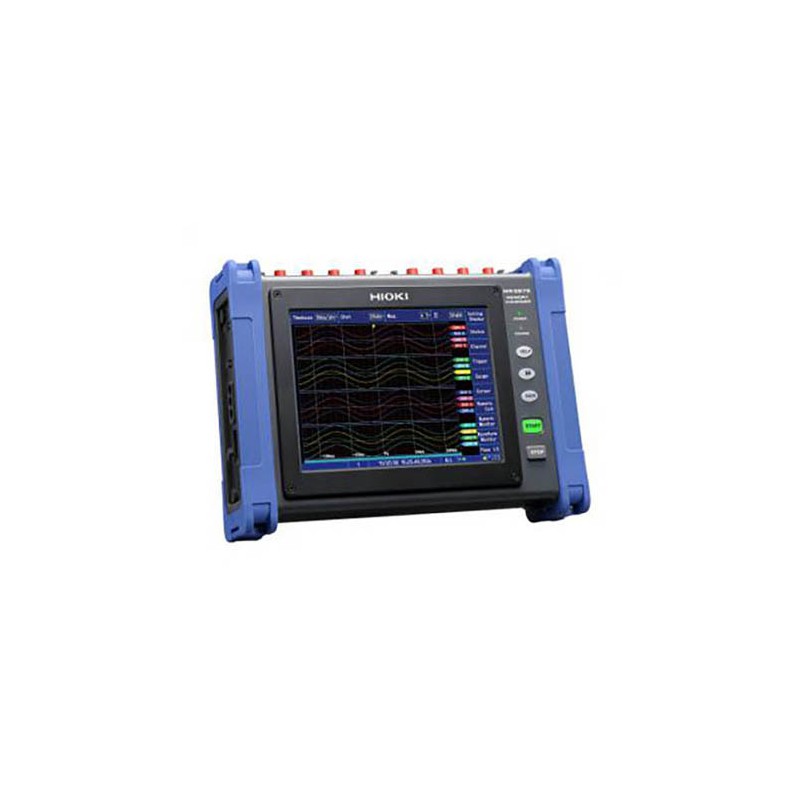

Hioki MR8875

HI20611423HM
Hioki

16-Channel Portable Memory HiCorder, 1000V Direct Input

$4,765
Quantity

Description

The Hioki MR8875 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts

Product Details
HI20611423HM
  • 1 - Instruction manual
  • 1 - Measurement guide
  • 1 - AC adapter Z1002
  • 1 - Protection sheet
  • 1 - USB cable
  • 1 - Shoulder strap
  • 1 - Application disk (Wave viewer Wv, communication commands table, CAN Editor)

Product Features:

  • 1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
  • Measure multiple channels simultaneously despite handheld portable design
  • Max. 2 μsec high-speed simultaneous logging for all input channels
  • Save directly to the SD Card in real time for uninterrupted long-term logging
  • 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
  • FFT calculation, waveform calculation functions for advanced analysis
  • Intuitive touch screen for optimal operability
  • Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests
  • 3 different power supplies
