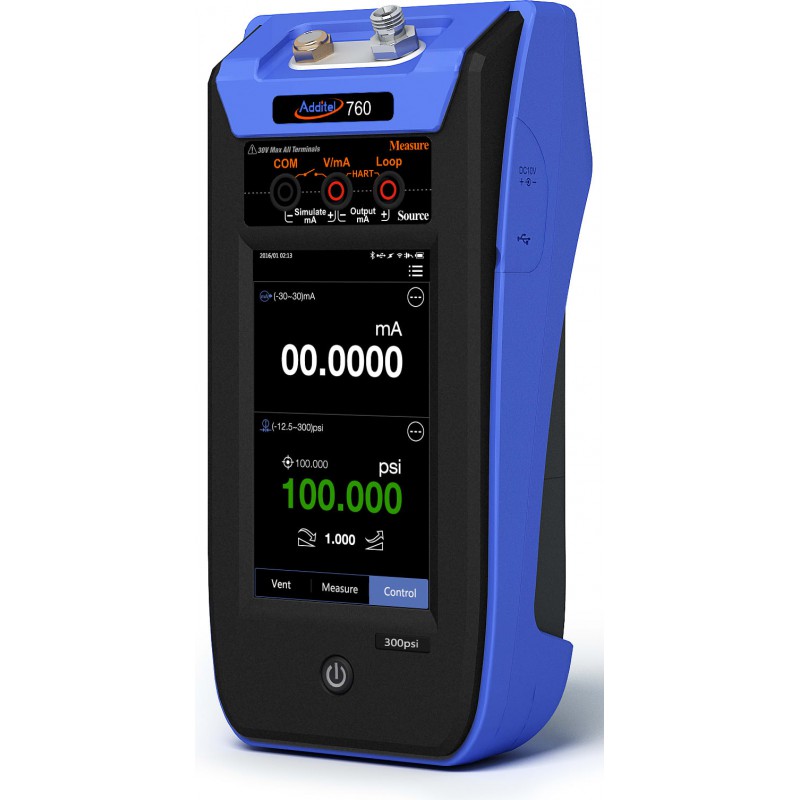

Additel ADT760

The Additel 760 series Automatic Handheld Pressure Calibrator is a portable automated pressure calibrator that fits in the palm of your hand and takes portable pressure calibration to new levels. Weighing less than 4 lbs (1.8 kg), the ADT760's innovative design contains a built-in pump, precision pressure sensor, internal controller and a large touch-screen color display. To generate pressure, simply key in the desired pressure and the Additel 760 will do the rest. Each unit has four channels: one internal pressure channel for source and measure pressures, two external pressure measurement channels, and one electronic measure and source channel. This series of calibrator has three standard models with the option of adding HART communications, documentation and data logging.

Core Features

• Fully automatic calibrator with built-in pump and controller
• Switchable internal pressure modules for expandable ranges
• Accuracy (1 year) of 0.02%FS
• External pressure modules available (measure only)
• Less than 4 lbs (1.8 kg) for handheld operation
• Source pressure, measure pressure and electrical
• 4 channels
• Optional HART communications
• Optional data logging and task documenting
• USB, Wi-Fi, and Bluetooth communications
