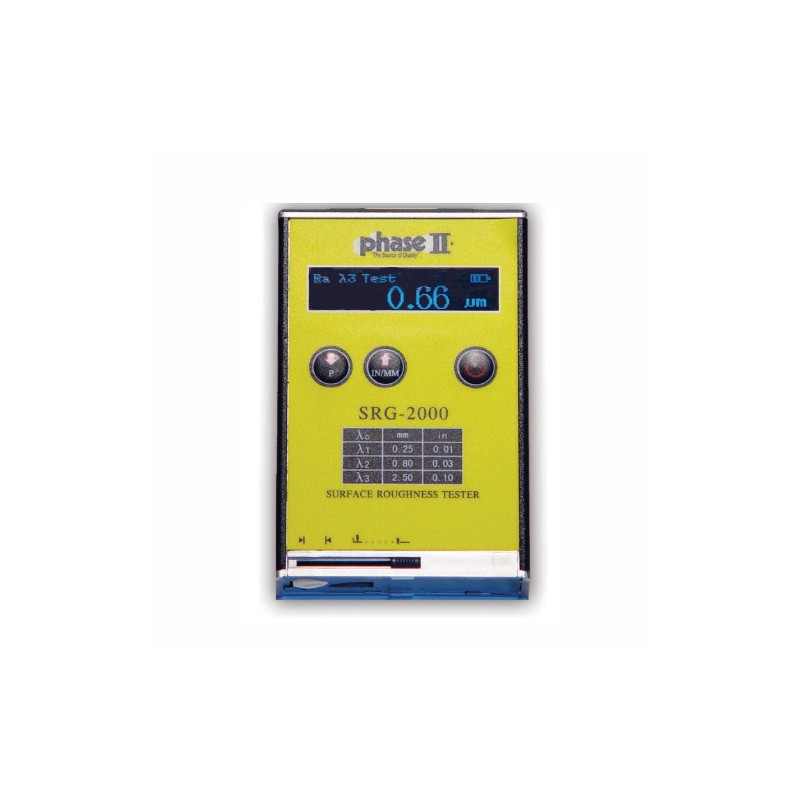

Phase II SRG-2000

Product Features:

• Surface roughness parameter: Ra (ISO), Rz (DIN), Rq(RMS), Rt
• Measuring range Ra: 0.05-10.0um
• Measuring range Rz: 0.1-50mm
• Measuring range Rq: 0.05 to 10.0um
• Measuring range Rt: 0.1 to 50um
• Resolution: 0.01um
• Cut-off lengths: 0.0009 in., 0.03 in., 0.09 in.
• Filter: RC analogue
• Tracing length: 0.23 in. (6mm)
• Tracing speed: 0.04 in./second (1.0mm/second)
• Accuracy: +/- 12% of actual value
• Pick-up stylus: Piezo-electric
• Tracer tip: Diamond, radius 5um
• Operating temperature: 32 ° to 104 °F
• Power: 3.6V / 2x NiMh batteries
• Charger: 9V DC
• Contact force on probe: < 1.8ozf (< 50gf)
• Static measuring force of sensor stylus: < 0.06ozf (< 1.6gf)
• Determines surface roughness parameters Ra,Rz, Rms(Rq) and Rt within wide measuring range
• Piezo-electric pick-up stylus with diamond tip assures very reliable measurement within tolerances that conform to ASME B46.1
• Surface roughness parameter Ra is computed to conform to ISO and
• Surface roughness parameter Rz is computed to conform to DIN
• Pocket-sized
• It can be used on the shop floor in any position, horizontal, vertical or anywhere in between
• Large LCD display shows either surface roughness parameter Ra, Rz, Rms(Rq) and Rt, combined with selected cutoff length
• External calibration of surface roughness values is possible by means of special CAL button, which makes adjustments easy
• Beep signal informs user about when each, individual measurement is ready
• Operates on various surfaces, including flat, outer cylinder, outer cone, grooves, and recesses greater than 80x 30mm

Applications

• Inspection departments
• Quality control
• Shop floor during machining
• During assembly in field
