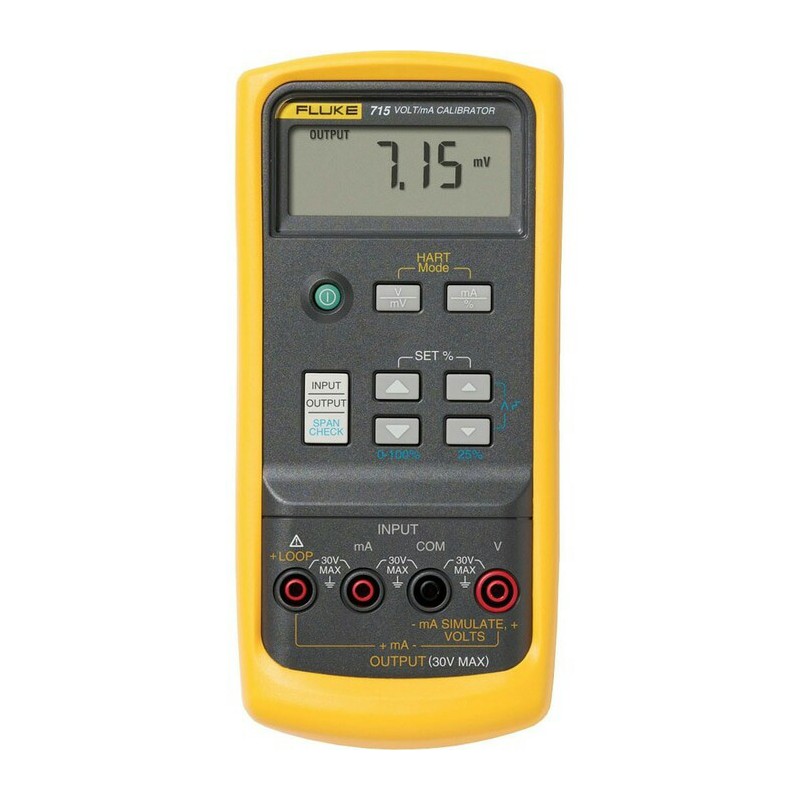

The Fluke 715 Volt/mA Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight and easy to carry. With a push-button interface the 715 is easy to use. It is EMI tolerant, dust/splash resistant, and features a removable battery door for quick battery changes.
Product Features:
- Measure loop current (0mA to 20mA, 4mA to 20mA) signals with 0.01% accuracy and 0.001 mA resolution
- Source precision voltage signals up to 20V with 0.01% accuracy
- Measure voltage output process signals from PLCs and transmitters
- Source or simulate 24mA loop current
- 24V loop supply with simultaneous current measurement
- Maximum voltage: 30 volts
- Non-operating temperature: -4° to 60°C
- Operating temperature: -10° to 55°C
- Relative humidity: 95% (10° to 30°C); 75% (30° to 40°C); 45% (40° to 50°C); 35 % (50° to 55°C)
- Operating altitude: 3,000 m max
- Shock: 1 m drop test
- Vibration: Random, 2g, 5 Hz to 500 Hz
- Safety ratings: CSA C22.2 No. 1010.1:1992
- EMC: EN50082-1:1992 and EN55022:1994 Class B
- Power: 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
