Description

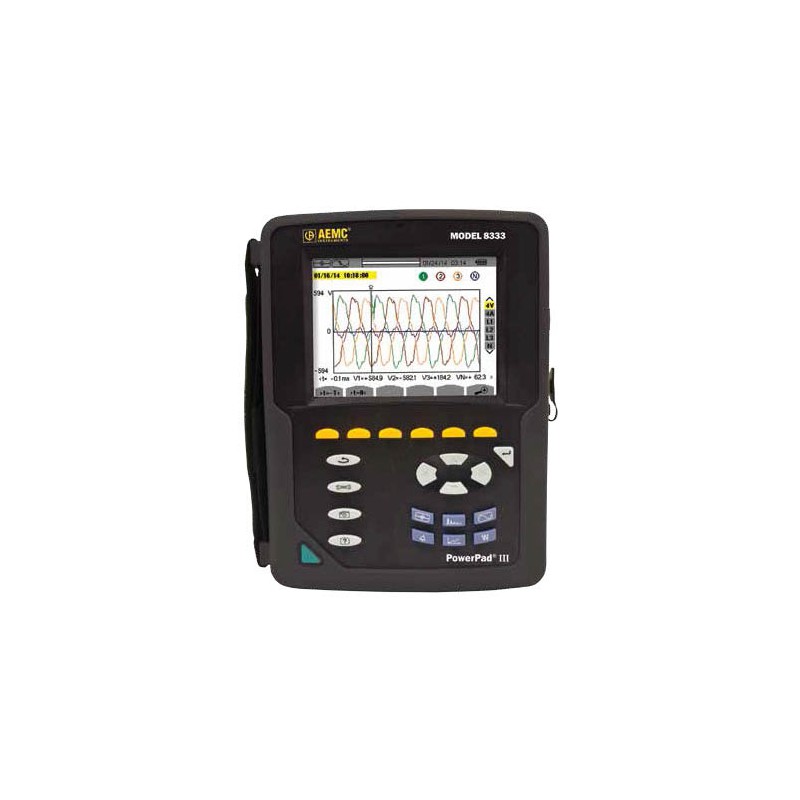

The AEMC PowerPad III 8333 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. The AEMC 8333 enables technicians and engineers to measure and carry out diagnostics and power quality work on single or three-phase networks. Three current and four voltage input terminals are provided are provided. Additionally, the AEMC PowerPad III 8333 is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.
The AEMC 8333 has memory available for storing trend data, alarms, transients, and snapshot data. The user can store on the AEMC PowerPad III 8333 up to 12 screen snapshots, up to 51 captured transients that contain four cycles for each active input, and 4,000 alarm events from up to 10 different parameters. Trend data can also be recorded for days, weeks or even months.
Product Details
AE14763789A8
- 1 - User manual (USB stick)
- 1 - DataView software
Product Features:
- Measurement of TRMS voltages up to 1000Vrms AC/1200VDC for single or three phase networks
- Measurement of TRMS currents up to 10kArms (sensor dependent)
- Calculation of neutral current and voltage
- Frequency measurement (40 to 70Hz systems)
- Records and displays trend data as fast as once per second for one month up to 29 variables
- Captures up to 51 transient occurrences on all V and A inputs
- Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
- Recording, time stamping and characterization of disturbances (swells, sages and interruptions, exceedence of power and harmonic thresholds)
- Measures energy VAh, VARh & Wh and reports quantities according to IEEE 1459 standards (P; Q1; D; N; S)
- 65μs/sample transient recording
- DataView software is included for configuring real-time display and report generation
Applications
- Verification of power distribution circuits
- In-plant troubleshooting of power distribution panels and individual machinery
- Monitor pad mount transformers and phase unbalances
- Determine harmonic problems originating from source or load
- Determine transformer K-Factor
- Energy metering (kVAh, VARh, kWh)
