Additel ADT960  from Additel
  • Additel ADT960  from Additel

Additel ADT960

AD76460009AA
Additel

Ultra-High Pressure Hydraulic Test Pump, Pressurize Large-Volume Workload, 60,000 psi, Autoclave F-250-C (F) - Diethylhexyl Sebacate

$6,000
Quantity

Description

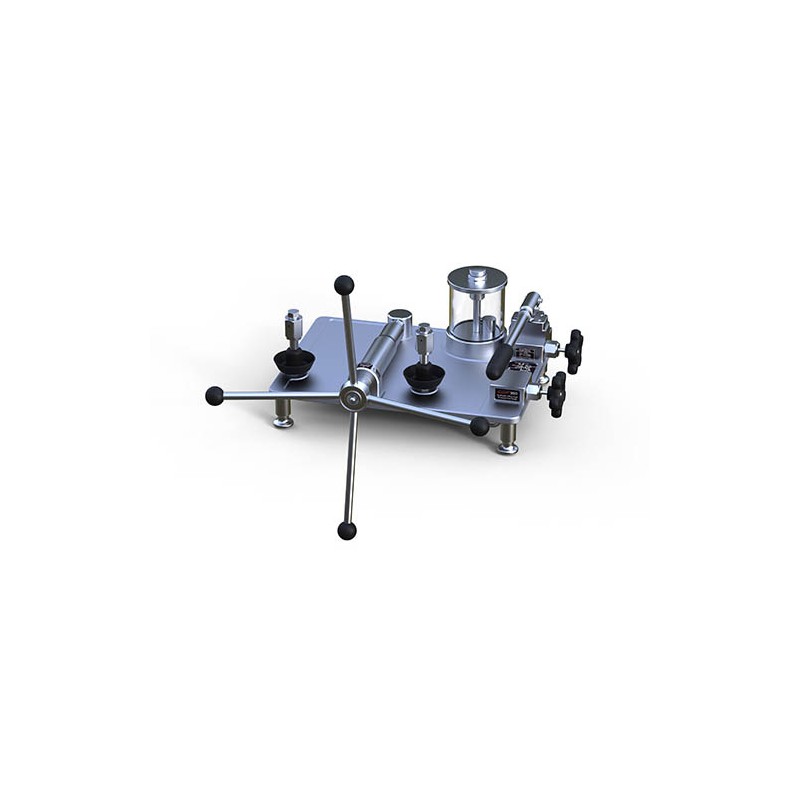

The Additel ADT960AF Ultra-High Pressure Hydraulic Test Pump, Pressurize Large-Volume Workload, 60,000 psi, Autoclave F-250-C (F) - Diethylhexyl Sebacate is a benchtop pressure pump designed to generate pressure to 60,000 psi (4,200 bar). This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the high pressure, fine adjust screw press. The ADT960-AF test pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. The Additel ADT960-AF is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers.

Product Details
AD76460009AA
  • 20 - O-rings
  • 1 - Manual
  • 1 - Bottle Diethylhexyl Sebacate: (250 ml)

Product Features:

  • Hand pump to fill large volume systems
  • Generated pressure: 0 to 60,000psi (4,200 bar) gauge pressure
  • Isolation valve provides stable pressures while reducing maintenance on hand pump check valve
  • 60,000 psi (4,200 bar) can be generated easily with dual-piston system
  • Media: Diethylhexyl Sebacate
  • Material:
    • Ram/adapters: SS
    • Body: SS, aluminum, Copper
    • Seals: Buna-N, PTFE, Copper Alloy, Aluminum Alloy
  • Pressure port type: Autoclave F-250-C female
  • Reservoir capacity: 420 ml (25.6 in3)
  • Height: 6.9 in. (175 mm)
  • Base: 17.9 in. (455 mm) x 15.0 in. (380 mm)
  • Weight: 33.1 lb (15 kg)
  • Fine adjust piston volume: 1.5 ml (0.09 in3)
  • Warranty: 1 year
