FLIR GF77 25°

Name: FLIR GF77 25°
Brand: Flir
SKU: FL72738375FG
Price: 26775.00 USD
Availability: InStock

Reference FL72738375FG

Brand Flir

Thermal Imaging Camera with Industrial Gas Detection, 25° High-Range Lens, 320 x 240 mK Sensitivity

$26,775

Quantity

Description

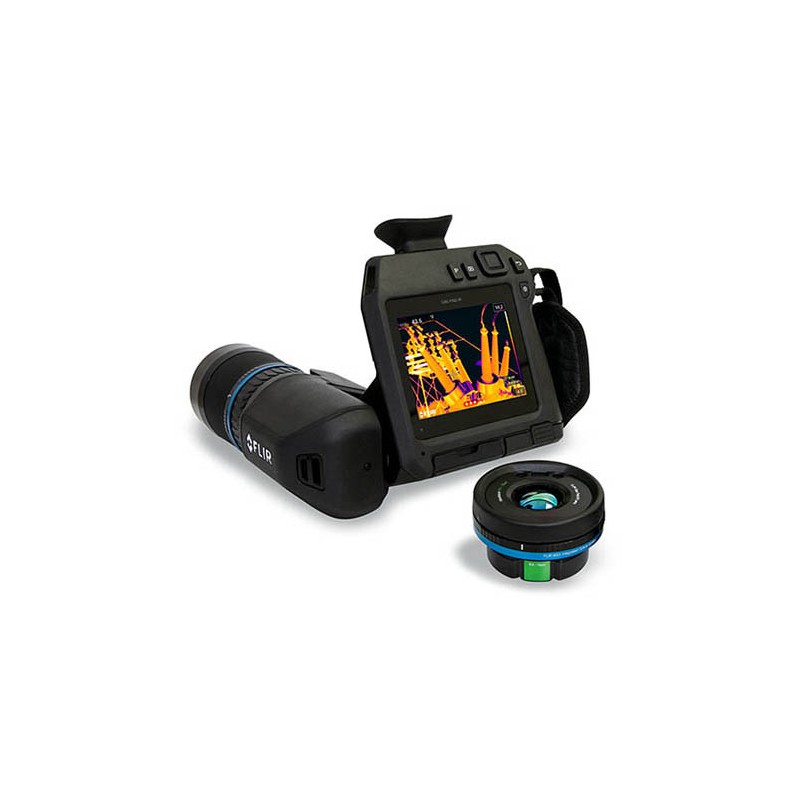

The FLIR GF77 25° HR Gas Find Infrared (IR) Camera with 25° High-Range Lens, 320 x 240 is a groundbreaking uncooled optical gas imaging camera with interchangeable lens options that detect methane (CH4), sulfur hexafluoride (SF6), ethylene (C2H4), ammonia (NH3), and other gas emissions. Capable of both gas detection and radiometric temperature measurement, the GF77 25° HR is an ideal inspection tool for electric power utilities, oil and natural gas operations, chemical/ manufacturing facilities, the food and agriculture industry, and first responders. This camera offers unmatched versatility as well as improved visualization of gas emissions and thermal inspections. Based on the award-winning design of the FLIR T-Series platform, the GF77 25° HR offers a vibrant, 4-inch touchscreen LCD, 180° rotating optical block, and eyepiece for convenience in direct sunlight. This affordable solution offers the benefit of built-in thermographic calibrations and the flexibility to detect a wide range of gases by simply changing lenses.

Product Details

Reference FL72738375FG

1 - GF77 Gas Find Infrared (IR) Camera
1 - 25° High-Range Lens
1 - Power Supply for Battery Charger
1 - Power Supply 15 W/3 A
1 - Printed Documentation
1 - SD Card (8 GB)
1 - USB 2.0 A to USB Type-C Cable
1 - USB Type-C to HDMI and PD Adapter
1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
1 - Lens Cap Strap
1 - Lens Cleaning Cloth
1 - Neck Strap
1 - Small Eyecup
2 - Batteries
1 - Battery Charger
1 - Hard Transport Case
1 - Lens Cap Front

Product Features:

Combined radiometric and gas detection lenses
Versatile OGI solution with interchangeable lenses for an expansive list of gases to detect
FLIR cloud connectivity with automatic transfer, storage, backup, share functionality that dramatically reduces time and effort
Visualize CH4, SF6, NH3, and C2H4 in different wavelengths with versatile lens solution, and inspect critical components using built-in thermal imager
Scan for emissions from safe distance and track them to source to begin repairs immediately
Take accurate temperature measurements in all environments from -20°C to 500°C with ±3°C or 3% temperature accuracy
Switch to viewfinder in bright, sunlit conditions to ensure optimal viewing
Improve gas-detection contrast with 1-Touch Level/Span auto-adjustment feature
Increase leak detectability by activating FLIR patented High Sensitivity Mode (HSM)
Precisely resolve target area with laser-assisted autofocus
Use data from built-in area measurement tool to calculate tank level and volume
Define routes and improve inspection flow with optional add-on of FLIR Thermal Studio Pro and FLIR Route Creator (not included)
Automatically tag each image file with GPS geolocation data for easy identification
Connect instantly over Wi-Fi to mobile devices for data transfer and reporting
Includes 25° high-range (HR) lens to detect sulfur hexafluoride, ammonia, and ethylene
