BK Precision DAS220

BP20790413BP
BK Precision

Portable 10-Channel Data Recorder, No Battery

$1,696
Quantity

Description

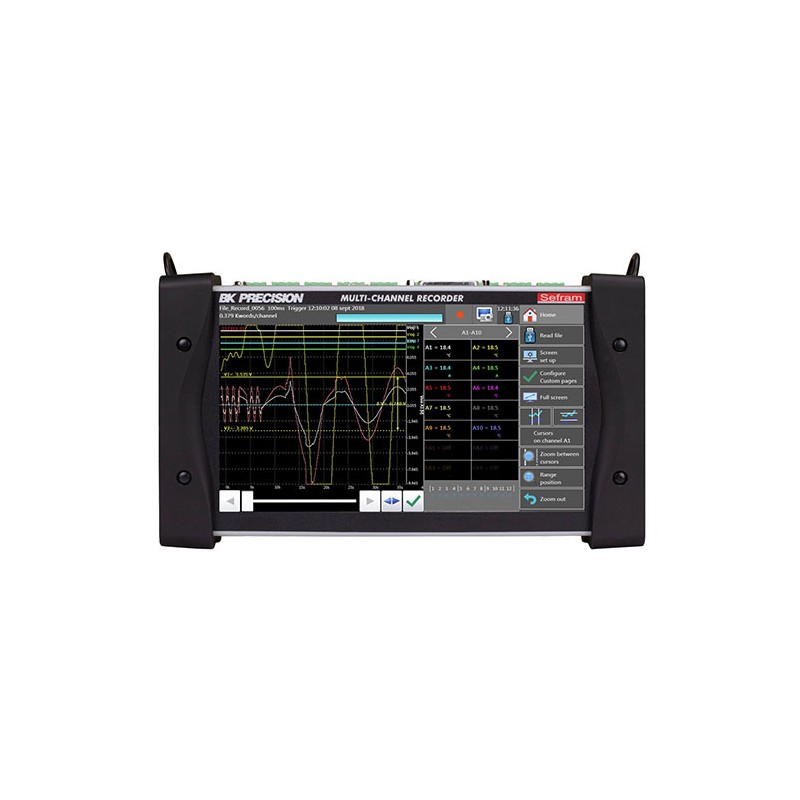

BK Precision DAS220 Portable 10-Channel Data Recorder, No Battery measures and records parameters commonly found in process applications including voltage, temperature, current, resistance, frequency, and pulse. It includes 10 universal integrated analog channels with convenient screw input terminals. Measurement results are viewed graphically and numerically on a 10-inch color touchscreen and saved to internal memory or external USB memory. Icon-driven menus make the instrument easy to navigate. The free DasLab Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on the PC. The data recorder features 32 GB of solid-state memory for data logging over extended periods. This model does not include a battery.

Product Details
BP20790413BP
  • 1 - DAS220
  • 10 - Input Connectors
  • 1 - Main Adapter 100/240V
  • 1 - 25-Pin Male Connector and Backshell
  • 1 - Shoulder Strap
  • 1 - Stylus
  • 1 - Soft Wipe
  • 1 - Screwdriver

Product Features:

  • No battery included
  • 10 built-in universal analog inputs
  • Wide 10-inch touchscreen TFT display
  • Versatile temperature measurements supporting thermocouples and Pt100 / Pt1000 temperature sensors
  • Measure voltage to ± 100V, resistance to 10 kOhm and current (with optional shunt)
  • Interfaces: 2 x USB host, LAN (10/100 base-T with RJ45 socket)
  • 16-bit vertical resolution
  • Recording interval (sampling rate) up to 1 ms
  • Trigger: Date, delay, threshold, combination of thresholds (and/or), word on logic channels (and, or, slope, level)
  • 32 GB internal solid state memory
  • 12 logic input/output channels
  • 4 timing logic input channels for pulse count, frequency and PWM measurements
  • 4 alarm outputs
  • 2 USB Host ports and 1 LAN interface
  • Free DasLab operating software (Windows compatible)
  • Virtual Networking Computing (VNC) capability for replicating the instrument's front panel interface on a PC

Applications:

  • Temperature logging with thermocouples and platinum resistance temperature sensors
  • Voltage measurements down to ±0.5 mV range
  • 4 - 20 mV current loop measurements
  • Frequency, pulse totalization and pulse rotation measurements, which can be expressed in RPM (rotations per minute)
