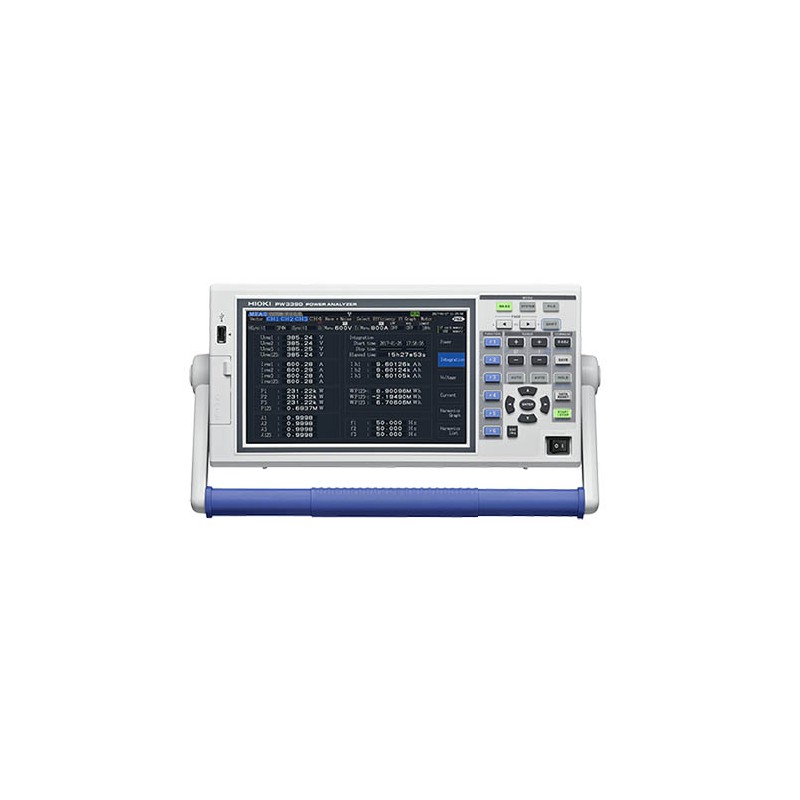

Hioki PW3390

Name: Hioki PW3390
Brand: Hioki
SKU: HI97514323HP
Price: 6488.00 USD
Availability: InStock

Reference HI97514323HP

Brand Hioki

3-phase 4-wire High Precision Power Analyzer, 0.5 Hz to 200 kHz

$6,488

Quantity

Description

The Hioki PW339001 is a high-precision, broad-range power analyzer for measuring electrical power from DC to inverter frequencies, providing four input channels to support single- and three-phase inverter motor systems up to 4000 A AC/DC with superior accuracy. Easily connect high accuracy clamp-type sensors without cutting the cables. Sensors operate over a temperature range of -40° C to 85° C (-40° F to 185° F), characteristics that enable highly accurate measurements even inside the engine room of a car.

The PW3390-01 delivers 4 input channels and ±0.04% basic accuracy for power - the top instrument in its class. Achieve more precise measurements of the power and efficiency of high efficiency equipment used in power electronics. Further, a 200 kHz measurement band and flat amplitude and phase characteristics up to high frequencies enable the precise measurement of power at top frequency levels and low power factor.

Product Details

Reference HI97514323HP

1 - Instruction Manual
1 - Power cord
1 - Measurement Guide
1 - USB cable
2 - Input cord labels

Product Features:

±0.04% basic power accuracy, among the best in its class
200 kHz measurement band with flat amplitude and phase accuracy that extend to high frequencies
Remarkably small and light footprint, enabling high-accuracy measurement to be easily carried out even in the field
High-accuracy, high-speed calculation of transient-state power in 50 ms; harmonic analysis; display of instantaneous waveforms; noise analysis; and simultaneous parallel calculation of all parameters, including efficiency loss
Send measured values to HIOKI data loggers using a Bluetooth wireless technology compatible adapter (LR8410 Link-compatible products)
Simultaneous measurement of multiple circuits and ability to acquire synchronized data using up to 8 devices (for 32 channels)
Simple power measurement using clamp-on current sensors
Measurement of current and power inputs and outputs as part of the new WLTP fuel efficiency standard
Select sensors require as connection or conversion cable in order to work with the Power Analyzer (see "Options and Accessories" for more information)
