Besantek BST-CTG04

Name: Besantek BST-CTG04
Brand: Besantek
SKU: BE97753884BB
Price: 390.00 USD
Availability: InStock

Reference BE97753884BB

Brand Besantek

2-In-1 Digital Coating Thickness Gauge with Probe

$390

Quantity

Description

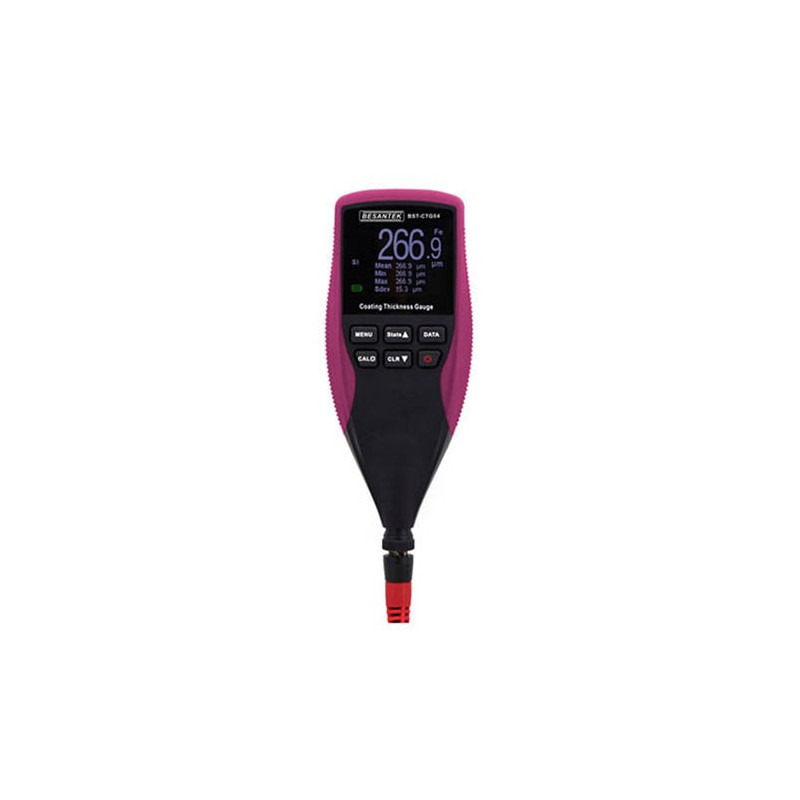

The BESANTEK BSTCTG04 2-In-1 Digital Coating Thickness Gauge with Probe is designed for the measurement of ferromagnetic metal base (iron, nickel, etc.) and non-ferromagnetic metal base (aluminum, brass, stainless steel, etc.) using the included 36 in. probes. This model stores up to 50 readings, and can switch between metric and imperial measurements.

Product Details

Reference BE97753884BB

2 - 1.5V AAA Batteries
1 - Set of Fe / NFe Probes
1 - Set of Plastic Shims
1 - Steel Reference Calibration Plate
1 - Aluminum Reference Calibration Plate
1 - Hard Shell Storage Case
1 - User Manual

Product Features:

Measurement Range: 0~1250μm/0~50mils (max. 2000μm/80mils for reference)
Resolution: 1μm/0.1mils
Accuracy: ±(2μm+2%)/±(0.1mils+2%)
Integrated 2 in 1 probe
Probe Length: 36in. (93 cm)
Automatic F/NF detection and display of substrate type
Continuous and single measurement options
Simultaneously displays measuring value, average value, maximum value, minimum value and standard deviation
Auto calibration and auto zero adjustment
Data memory store for 50 readings
Backlit display with adjustable brightness
Auto power off function
Selectable Metric and Imperial measurement systems
User-defined high and low alarm thresholds
Low battery indicatiom
320 x 240 mm TFT LCD display
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test surface diamter: 8 mm
Minimum thickness of base material: 0.4 mm
