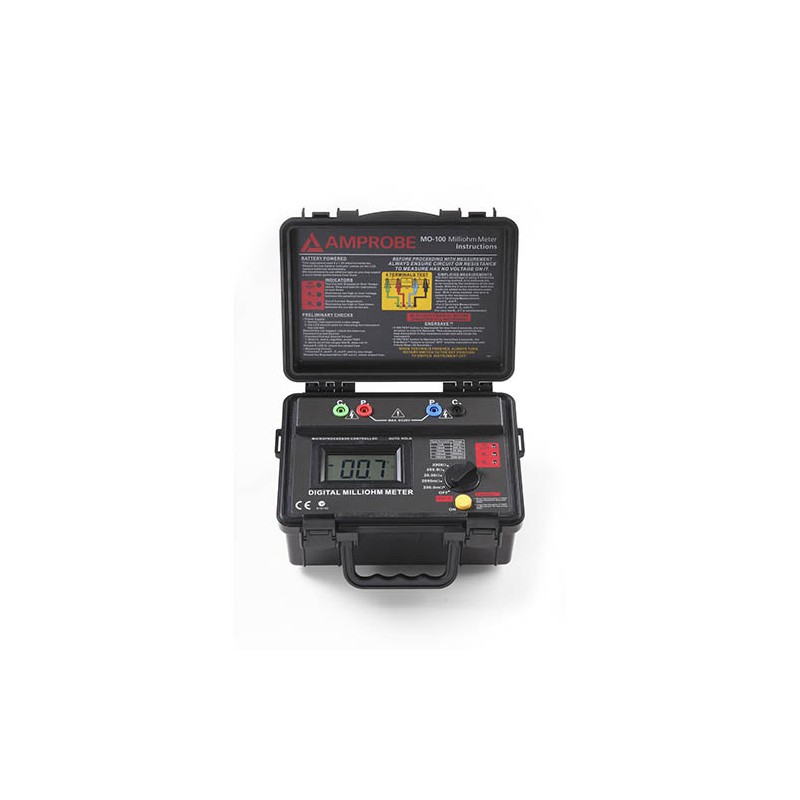

Amprobe MO-100

Name: Amprobe MO-100
Brand: Amprobe
SKU: AM03086235AM
Price: 638.00 USD
Availability: InStock

Reference AM03086235AM

Brand Amprobe

Portable Battery Powered Milliohm meter with Shoulder Belt and Accessories

$638

Quantity

Description

The Amprobe MO-100 Milliohm Meter lets the user diagnose potential failure. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.

The Amprobe MO-100 is a robust and compact portable milliohm meter that measures 5 Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100� Ohm. The MO100 has protection against inadvertent connection to overvoltage, a large easy to read LCD display, as well as an "O-Ring" sealed enclosure.

Product Details

Reference AM03086235AM

1 - Users manual
1 - test leads
1 - batteries (installed)

Product Features:

Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
Measurement precision with three test currents with over-temperature protection
Protection against inadvertent connection to overvoltage
Large LCD
Potential lead resistance, current lead resistance checks
Auto-hold and auto-off features
Lightweight, robust & compact
Indicates measurement errors due to temperature or connection problems
"O-Ring sealed enclosure
Battery powered
IEC / EN 61010-1
