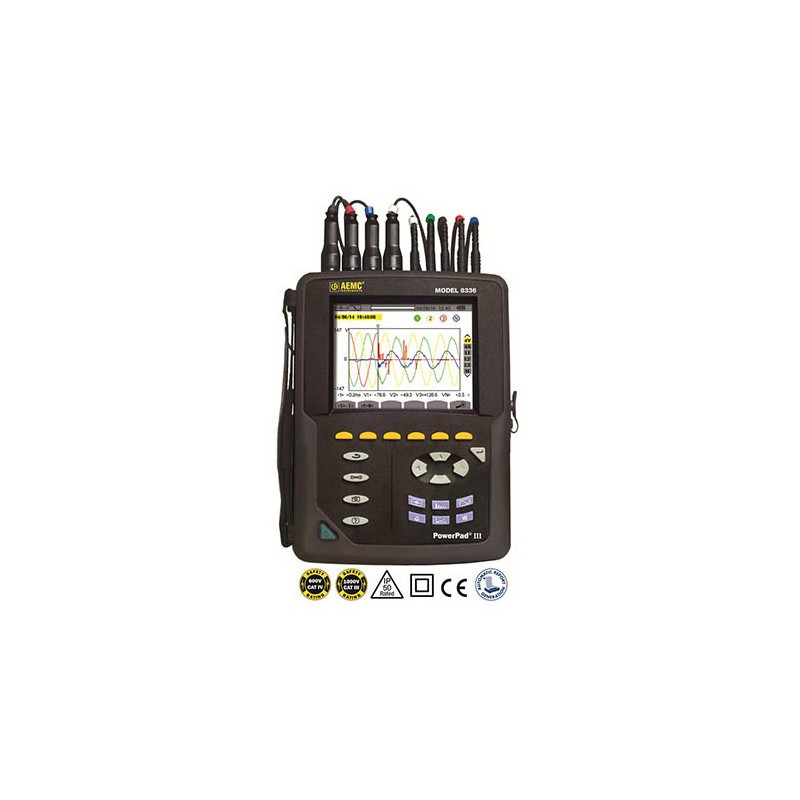

PowerPad III Thee-Phase Power Quality Meter

$3,451

Quantity

Description

The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.

The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.

Product Details

Reference AE15899741A8

1 - User manual (USB stick)
1 - DataView software

Product Features:

Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems
Measurement of TRMS currents up to 10kArms (sensor dependent)
Measures up to 5000ADC with the AC/DC Current Probe Model J93 Frequency measurement (40 to 70Hz systems)
Records and displays trend data as fast as once per second for one month up to 41 variables
Captures up to 210 transient occurrences on all V and A inputs down to 65/sec
Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power up to the 50th harmonic
Recording, time stamping and characterization of disturbances (swells, sages and interruptions, exceedence of power and harmonic thresholds)
2GB SD Card for Trend Recording memory; Alarm, Snapshot, Transient and Inrush stored in internal flash memory
Measures energy VAh, VARh & Wh
65μs/sample transient recording
DataView software is included for configuring real-time display and report generation
