AEMC 6422

Name: AEMC 6422
Brand: AEMC
SKU: AE45846719A6
Price: 356.00 USD
Availability: InStock

Reference AE45846719A6

Brand AEMC

Digital, 3-Point Ground Resistance Tester

$356

Quantity

Description

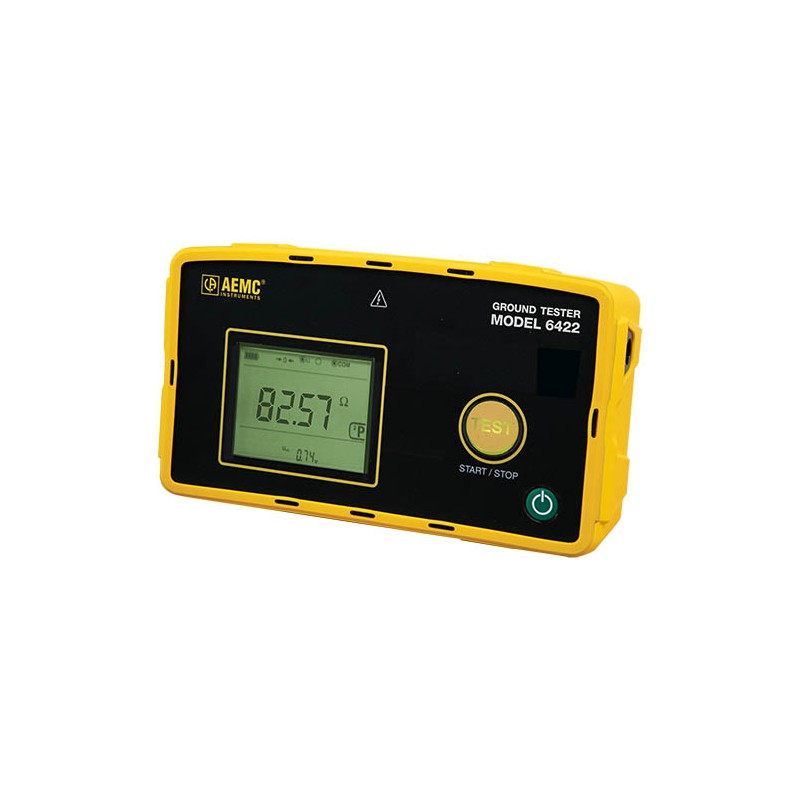

The AEMC 6422 Digital Ground Resistance Tester performs 2-pole and 3-pole ground resistance measurement. This direct reading tester is auto-ranging, so it automatically seeks out the optimum measurement range. The 6422 (2135.55) is easy to use - simply connect the leads, press to measure, and read. The large LCD also indicates low battery status, overrange, and lead reversals.

Product Details

Reference AE45846719A6

1 - 6422 (2135.55) Ground Tester
6 - AA Alkaline Batteries
1 - Soft Carrying bag
1 - User Manual

Product Features:

Simple, one button operation - eliminates errors in testing
Test button turns green when measurement is stable
2P resistance/ 3P ground resistance measurement up to 50kΩ for highly resistive terrain
Large back lit digital display - easier to read in all lighting conditions
Automatic hold function - retains last measurement after the reading stabilizes
Automatic test frequency selection between 128 and 256 Hz
Powers up in 2 pole mode - automatically checks the injector lead connection when connected to the H auxiliary rod
Convenient storage of the three measurements along with the average and % deviation
Built in test lead compensation capability
CAT IV 600V rated for a high level of operator safety
Color coded leads and terminals provide fast, error-free connection hook-up
Detects and prohibits hazardous voltage measurement
Direct access to all functions, even when wearing work gloves
Rugged water resistance case, for all terrain use
Built-in display stand to prop up instrument for seeing the display better when placed on the ground
