Yokogawa CL420

Name: Yokogawa CL420
Brand: Yokogawa
SKU: YO60048545YC
Price: 541.00 USD
Availability: InStock

Reference YO60048545YC

Brand Yokogawa

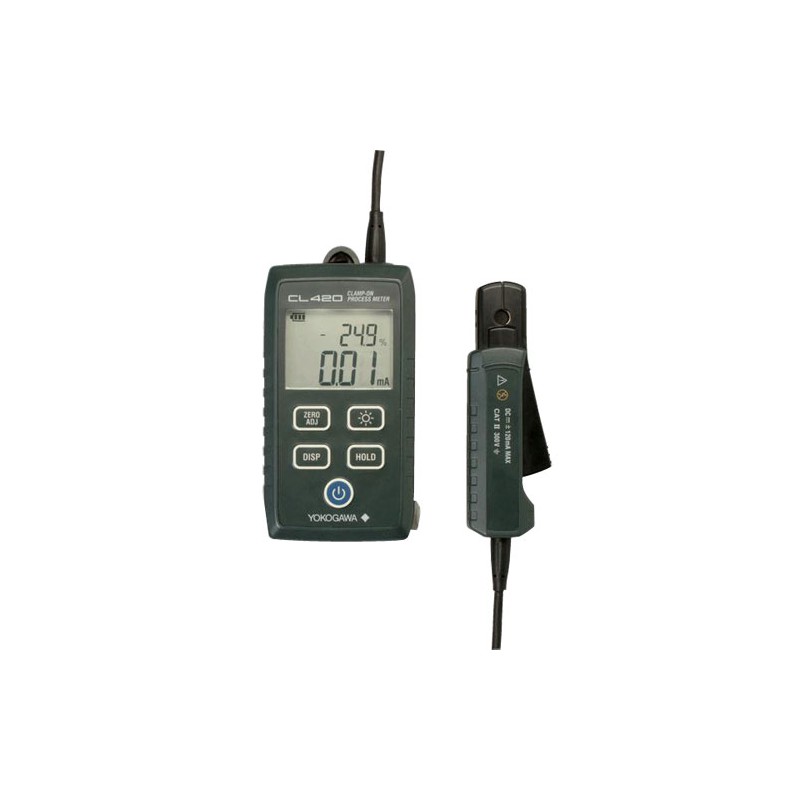

Clamp-on Process Meter, DC mA Current

$541

Quantity

Description

The Yokogawa CL420 Clamp-on Process Meter, DC mA Current allows the user to make safe current checks of 4 to 20mA without breaking the loop. In addition, the output function provides a simple way to log and monitor the data.

Product Details

Reference YO60048545YC

1 - Soft Carrying Case (93045)
2 - Batteries
1 - User Manual

Product Features:

Leakage current measurement with current range from 200mA to 1000A
AC and DC output
68mm in diameter of measurable conductor
Approved for conformity to safety standards EN 61010-1, EN 61010-2-032 (CAT III 300 V)
Method of detection: Mean Value
Display: LCD (Digital display: 1999 counts)
Response Time: Approx. 1 second
Range Switching: Manual-range
Data hold: On all range
Operating temperature and humidity: -10 - 50°C , 80% RH or less (no condensation)
Influence of external magnetic field: 15 mA or less in proximity to a 10 mm-dia conductor carrying 100A
Influence of conductor position: 2% or less
Influence of Residual Current: 10 mA or less in proximity to a 10 mm-dia conductor carrying 100A
Circuit voltage: 300 Vrms or less
Withstanding voltage: 3.7 kV AC for one minute
Power Supply: 6 LR61 x 1; 6F22 (006P) 9V x 1
