Description

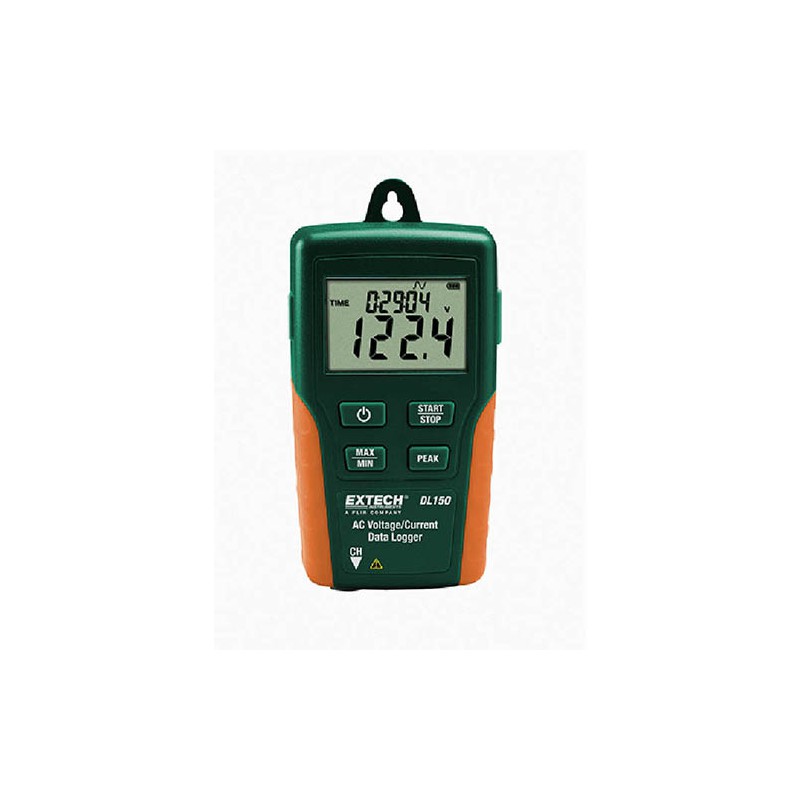

The Extech DL150 is a True RMS AC voltage and current data logger. Data log up to 100,000 readings of TRMS AC Voltage (600) or Current (200 Amp) with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, min/max, and if the user settable high/low alarms have been exceeded. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes.
Product Details
EX34554806ED
- 1 - Current Clamp
- 1 - Test Leads
- 1 - Alligator Clips
- 1 - Software
- 1 - USB Cable
- 1 - 110-Volt Ac Adapter
- 1 - 3.6V Lithium Battery
- Measure True RMS AC Voltage (600V) or Current (200A)
- Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
- High/Low user-settable alarms
- LCD indicates time/date, current readings, Min/Max, and whether alarm settings have been exceeded
- Normal, Peak and Capture (user-specified trigger level) recording modes
