Fluke 729  from Fluke
  • Fluke 729  from Fluke
  • Fluke 729  from Fluke
  • Fluke 729  from Fluke

Fluke 729

FL00493055F7
Fluke

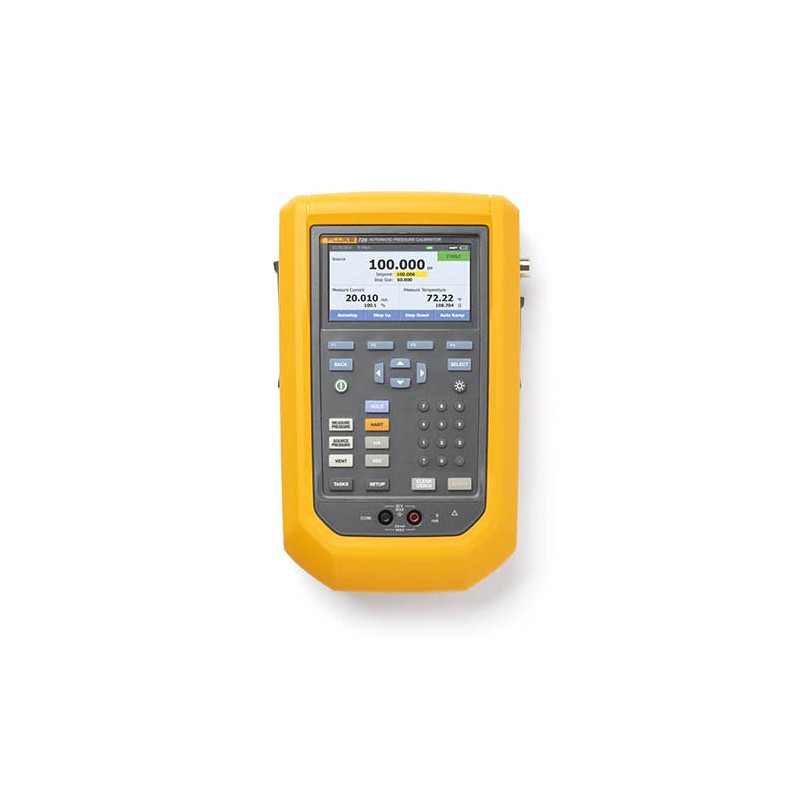

Automatic Pressure Calibrator

$7,861
Quantity

Description

The Fluke 729 150G Automatic Pressure Calibrator, 150 - 300 psi, 10 Bar has been designed specifically with process technicians in mind to simplify the pressure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a timeconsuming task, but the 729 150G makes it easier than ever with an internal electric pump that provides automatic pressure generation and regulation in an in an easy-to-use, rugged, portable package.

The ideal portable pressure calibrator, the 729 150G allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilizes the pressure at the requested value.

The Fluke 729 150G can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance level. The 729 150G does the rest.

Built-in HART communication capabilities enable HART transmitter mA adjustments, light HART configuration and the ability to adjust to applied 0 % and 100 % values.

Upload and manage documented calibration results with DPCTrack2 Calibration Management Software, making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.

Product Details
FL00493055F7
  • 1 - Set of Stackable Test Leads
  • 1 - Set of Hook Clips (AC280)
  • 1 - Set of Alligator Clips
  • 1 - Set of Test Probes
  • 1 - Magnetic Hanger Kit
  • 1 - Carrying Strap
  • 1 - Power Supply
  • 1 - Rechargeable Battery (Installed)
  • 1 - Hose Kit with Push Fit Adapters
  • 1 - Hanging Clip
  • 1 - USB Cable
  • 1 - 1/8 in. FNPT-to-1/4 in. FNPT Adapter
  • 1 - 1/8 in. FNPT-to-F-M20 Adapter
  • 1 - 1/8 in. FNPT-to-1/4 in. FBSP Adapter
  • 1 - PTFE Tape
  • 2 - Sintered Filters
  • 1 - Water Trap Drain
  • 1 - Set of Valve Tuning Hoses
  • 1 - Soft Carrying Case
  • 1 - Safety Sheet
  • 1 - Quick Start Guide

Product Features:

  • Automatic pressure generation and regulation to 150 psi
  • Easily document the process using onboard test templates
  • Automatic internal fine-pressure adjustment
  • Measure, source and simulate 4 to 20 mA signals
  • 24V loop power for powering transmitters for tests
  • Bright dual/triple-channel color graphical display HART communication for testing HART smart transmitters
  • Built in leak testing for verifying test setups for leakage
  • Measure VDC for testing 1V DC to 5V DC output transmitters
  • Upload documented test results to DPCTrack2 Calibration Management Software
  • For use with 700 and 750 Series
