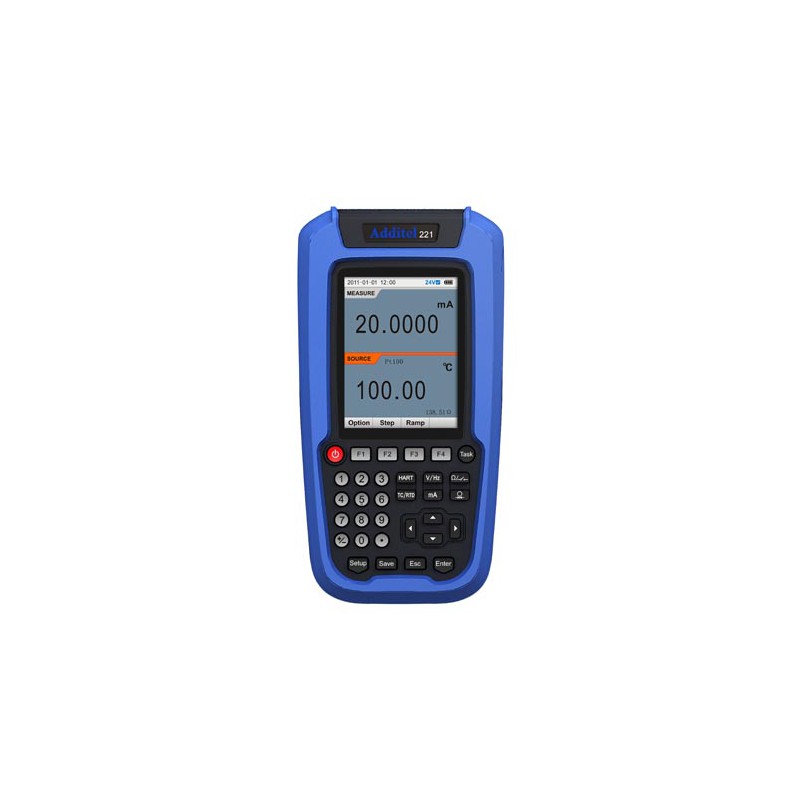

Additel ADT221A

Name: Additel ADT221A
Brand: Additel
SKU: AD20769422AA
Price: 2564.00 USD
Availability: InStock

Reference AD20769422AA

Brand Additel

Multifunction Temperature Calibrator

$2,564

Quantity

Description

The Additel ADT221A Multifunction Temperature Calibrator features several patented technologies. It is an ultracompact, rugged, and easy to use device with a smartphone-like menu and interface to make its operation simple.

The Additel ADT221A is very unique to the multifunction temperature calibrator market. Not only does it provide you with the ability to source, simulate and measure temperature and electrical functions but it also incorporates full documenting capability and many other solutions other products do not provide. As a standalone device, you can create tasks, run tests and store the results. With the use of Additel/Land Software or Additel/Cal software, all saved tasks and data can be downloaded and managed. With it's unique internal cold junction compensation sensor, cold junction compensation is very simple and easy.

Product Features:

Sources and measures mV, mA, ohms, RTDs, thermocouples, frequency, and pulses
Simulates and measures 13 thermocouples and 11 RTDs to calibrate transmitters
24V loop power supply
Simultaneous dual reading capability
Automatic switch test
Supports square root transmitter
Pulse frequency output for calibration of flow totalizer
Smartphone-like menu and interface make operation simpler and easier
Ultra-compact, size 3.9 in. x 7.6 in. x 2.0 in. (100mm x 192mm x 52mm)
Weight 1.6 lb (0.7 kg)
One hand operation
Cold junction equivalent block in calibrator
A calibrated PRT element with flexible leads is installed in equivalent block for thermocouple cold junction compensation
This PRT element can be pulled out from calibrator and re-calibrated and corrected at ice point by users
ISO17025 Accredited Calibration with data
Up to 30V voltage on any two sockets and up to 1A current on current sockets will not damage calibrator
Calibrator will return to normal condition as soon as voltage or current is removed
Rechargeable Li-ion battery for 15 hours uninterrupted use
Battery life will be reduced when 24V is applied
Rechargeable battery is replaceable
Manage information of device under test
Set up automated calibration procedures
As-found and As-left functions allow recording and documenting results for quality control
Download tasks and upload results
Snapshots allow you to capture and save work
CVD coefficients of calibrated PRT can be input into calibrator for accurate temperature measurement
Build-in converters for pressure units, temperature units, temperature vs. resistance (RTDs), and temperature vs. millivolt (thermocouples)
3.5 inch TFT color screen
3 year Warranty
