AEMC 6417 from AEMC
  • AEMC 6417 from AEMC

AEMC 6417

AE65098355A6
AEMC

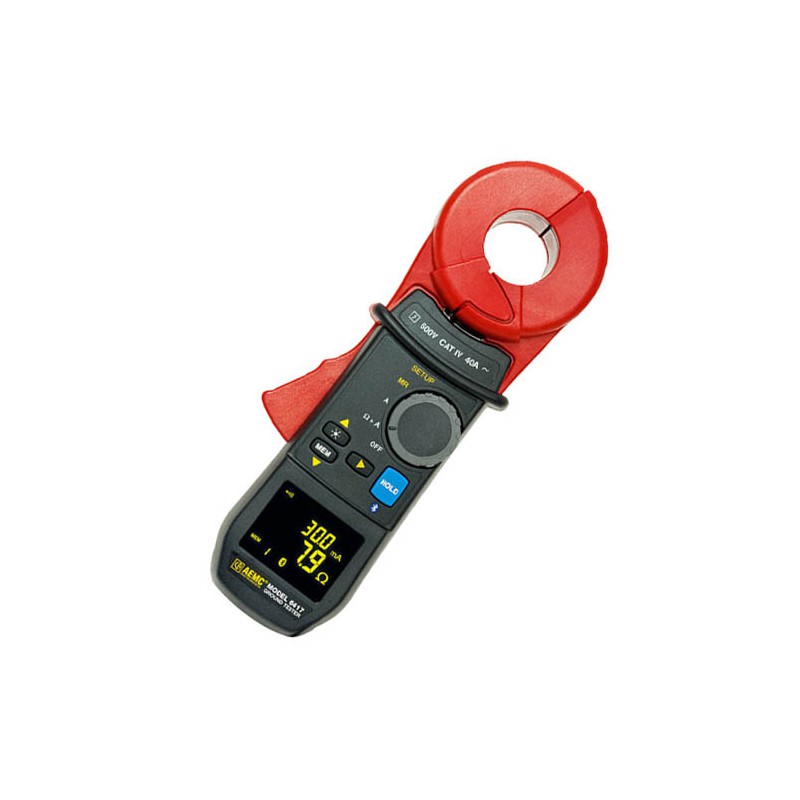

Clamp-On Ground Resistance Tester with Bluetooth, Alarm and Memory Functions

$1,143
Quantity

Description

The AEMC 6417 (2141.02) Clamp-On Ground Resistance Tester with Bluetooth measures ground rod and grid resistance and impedance without the use of auxiliary rods. Clamp-on ground resistance testers can be used in multi-grounded systems without disconnecting or de-energizing the ground system under test. The Model 6417 simply clamps around the grounding electrode or conductor and measures the resistance to ground. By performing measurements on intact ground systems, the user also verifies the quality of the grounding connections and bonds. Resistance and continuity of grounding loops around pads and buildings may also be measured.

The Model 6417 can communicate via Bluetooth, allowing users to view stored measurements on a PC or Android mobile device, up to 30 feet away.

Product Details
AE65098355A6
  • 1 - Bluetooth USB Adapter
  • 1 - USB Drive with DataView Software
  • 1 - Hard Carrying Case
  • 1 - Calibration Loop
  • 4 - 1.5V AA Batteries
  • 1 - Ground Workbook
  • 1 - User Manual
  • 1 - Quickstart Guide

Product Features:

  • Ground integrity measurement
  • View stored measurements via Bluetooth (Class 2, communicates up to 30 ft) to a PC or Android mobile device
  • Ground voltage indication warns of possible unsafe conditions
  • Large multi-function bright yellow organic LED display (OLED)
  • Selectable test frequency improves accuracy in inductive environments
  • Large jaw design with clamping diameter of 1.37" (35mm)
  • Stores up to 2000 measurements (Ω and/or A) with time-stamping
  • DataView software enables data storage, real-time display, analysis, report generation and system configuration
  • Alarm function with adjustable set point and buzzer for checking volts, amps and ohms
  • Rugged Lexan head and body construction resists breakage
  • Alarm settings and stored memory information saved during shutdown
  • Noise icon and buzzer alert user to presence of dangerous voltage and current levels
  • Differentiates between loop and ground resistance measurements
  • Designed to EN 61010-1, 600V CAT IV safety standards
  • Includes Auto Power OFF function
