Digi-Sense 98767-02

Name: Digi-Sense 98767-02
Brand: Digi-Sense
SKU: DS76849035DS
Price: 468.00 USD
Availability: InStock

Reference DS76849035DS

Brand Digi-Sense

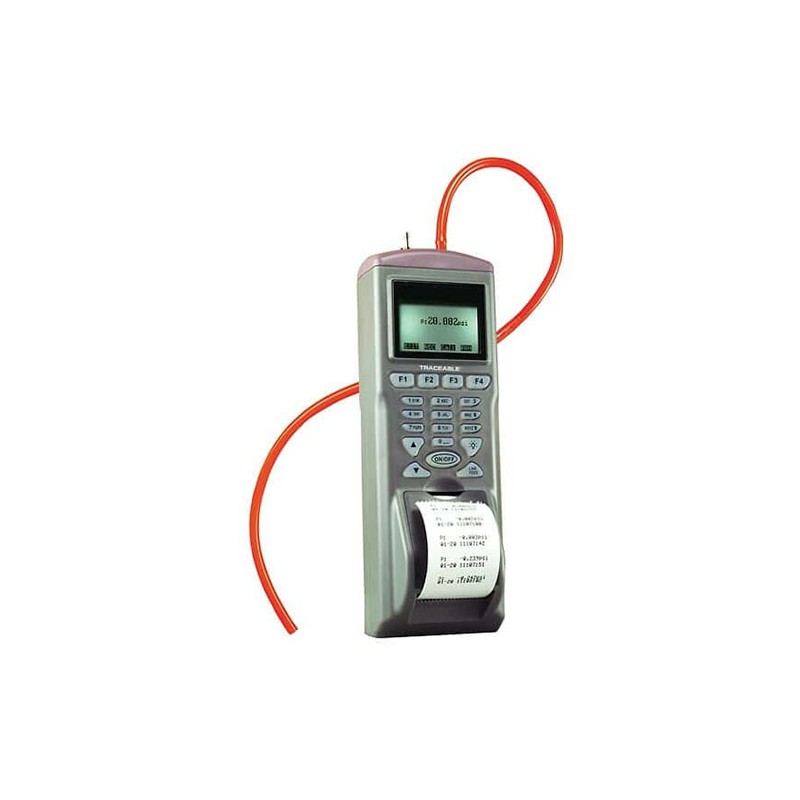

Traceable Printing Digital Manometer with Calibration, ±100 psi

$468

Quantity

Description

The Digi-Sense 9876702 Traceable Printing Digital Manometer with Calibration, ±100 psi can read and display 11 different units of measure, and obtain either gauge pressure/vacuum or differential pressure measurements. The 5/8 in. H LCD backlit digital display is easy to read, even from 6-ft away; its typical response time is 0.5 seconds.

The 98767-02 features an RS-232 output option for data acquisition (not included), REC function with count-up timer for Min/Max readings over a set period of time, and HOLD function to freeze the display.

The 98767-02 is a Traceable Products with an individually-numbered Traceable Certificate, assuring accuracy from the ISO/IEC 17025:2017(1750.01) calibration laboratory, accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement. Each 98767-02 goes through an intense vetting process before it can carry the Traceable name, thus saving both time and money by not having to calibrate it separately.

Product Details

Reference DS76849035DS

1 - Traceable Printing Digital Manometer, ±100 psi
1 - Pressure Sensor
2 - 19 in. Sections of Flexible Tubing
1 - Hard-Sided Carrying Case
1 - Roll of Printer Paper
1 - Battery
1 - NIST-Traceable Calibration Certificate with Data

Product Features:

Print data directly from meter
Includes NIST-Traceable certificate from A2LA accredited (1750.01) calibration laboratory
Record up to 12,000 readings
Connect tubing with 1/16 to 3/16 in. (1.6 to 4.8 mm) inner diameter
Obtain fast results with 0.5 second response time
Freeze display with HOLD feature
Accuracy: ±0.3% of full scale between 0 to 50°C
Min Pressure (PSID): -100
Max Pressure (PSID): 100
Max Vacuum (" Hg): -204
Min Vacuum (" Hg): 204
Process Connection: 1/16 to 3/16 in. (1.6 to 4.8 mm) hose barb
Units Of Measurement: psi, mbar, bar, cm/H2O, "H2O, ft/H2O, mm/Hg, "Hg, kg/cm2, oz/inch2, kPa
Display: 3.5-digit LCD, 5/8 in. H digits
Battery Type: 9 V battery (1)
Housing: ABS plastic
Media Compatibility: Air and clean gases
Resolution: 0.1 psi, 1 in. Hg
Height (in): 8
Width (in): 2 3/4
Length (in): 1 3/4
Description: Traceable printing digital manometer with calibration, ±100 psi
