AEMC 205 from AEMC
  • AEMC 205 from AEMC

AEMC 205

AE99441886A2
AEMC

TRMS Power Clamp Meter, 1000VAC/DC, 600AAC/900ADC, Continuity, Phase Rotation

$253
Quantity

Description

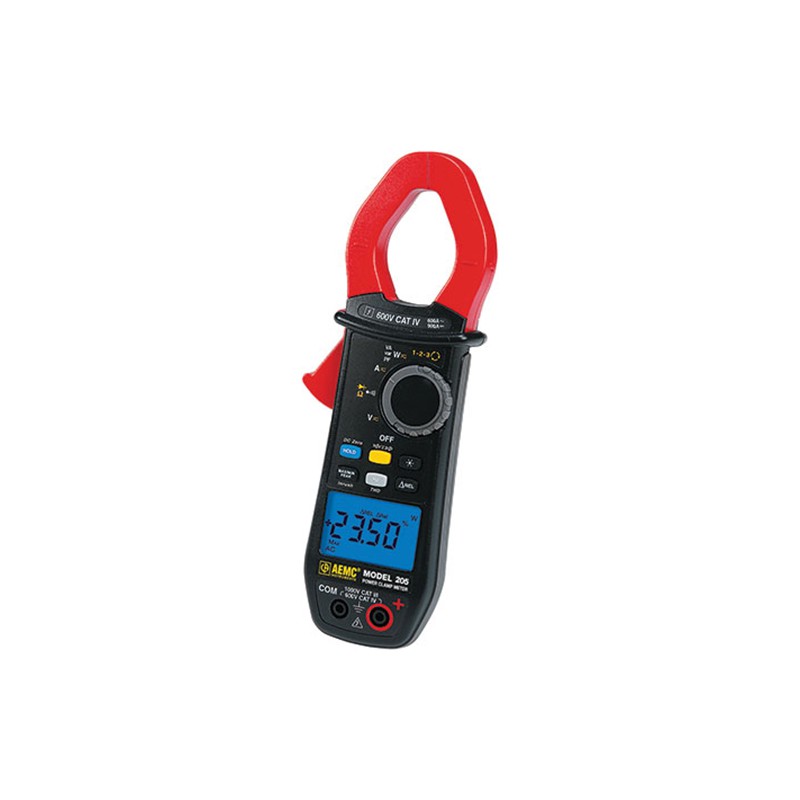

The AEMC True RMS Clamp-On Meter 205 is safety rated at 600V CAT IV. It measures AC + DC volts and amps, frequency, continuity, resistance and can also perform diode checks. It also measures Power and Power Factor, phase rotation, and THD. A Delta relative function allows new measurements to be compared to a reference value and a MIN/MAX function keeps track of these high and low values. The Model 205 also keeps track of peak + and peak – values.

The 205 (2139.40) is rugged enough for the most demanding work environments and its IP54 rating allows it to withstand both dust and water spray. Function selection can easily be performed with one hand, even with a glove on.

Product Details
AE99441886A2
  • 2 -5 ft. (1.5m) needle tip color-coded leads with 4mm right angle plug
  • 1 - Soft carrying case
  • 1 - 9V Battery
  • 1 - User Manual

Product Features:

  • UL94 VI flame retardant self-extinguishing
  • 6000-count blue electroluminescent backlit display
  • Measures up to 1000VAC (1400V peak), 1400VDC and AC+DC with resolution to 10mV
  • Measures up to 600AAC and 900ADC
  • Measures single- and three-phase power (real, reactive, and apparent) up to 600kW with resolution to 1W
  • Measures frequency to 20kHz with 0.1Hz resolution
  • Auto selects AC or DC voltage measurement
  • True InRush®current measurement with 1ms capture
  • Jaw opening to 1.33" (34mm); IP54 Rated
  • Leads are constructed with a flexible silicone material

Applications

  • Electrical maintenance and power distribution
  • Safety lighting system maintenance
  • Automotive test troubleshooting
  • AC or DC motor testing
  • Power plant troubleshooting
  • Commercial, industrial residential & HVAC troubleshooting
  • Power panel, junction box and battery bank measuring
  • Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
