Instek GOM-805  from Instek
  • Instek GOM-805  from Instek

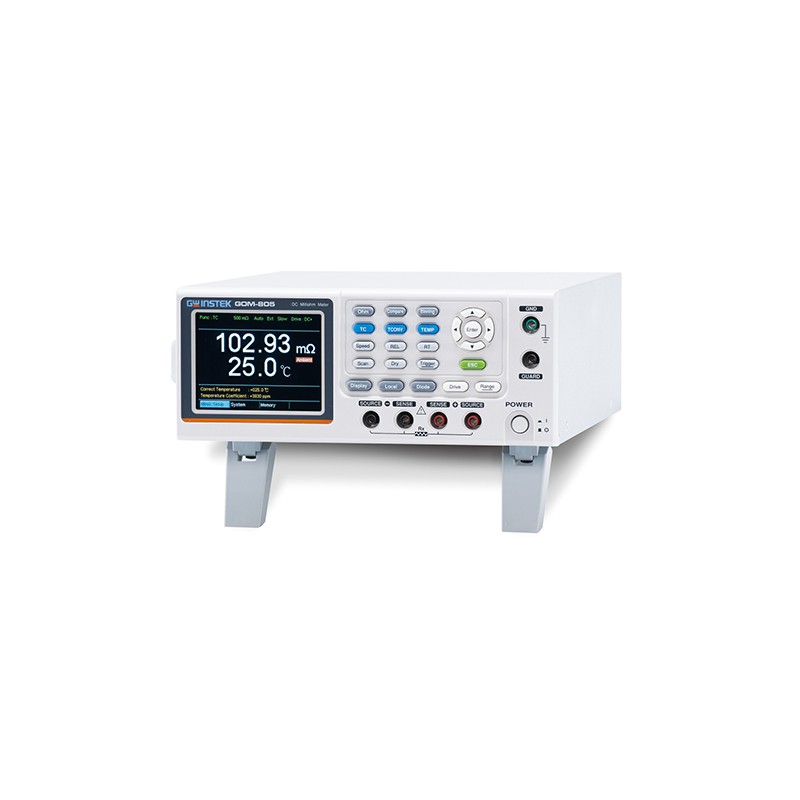

Instek GOM-805

IN68228300IG
Instek

DC Milliohm Meter, 50 mOhm - 5 MOhm, RS-232C, USB & GPIB Interface, Handler/Scan/ I/O

$765
Quantity

Description

The Instek GOM-805 features a 3.5-inch TFT display, maximum 50,000 counts measurement display, the rapid sampling rate of 60 readings per second, optimum 0.05% measurement precision, four wire measurement method as well as the temperature measurement and temperature compensation measurement function to meet the requirement of low resistance measurement application. More features, including 20 sets of panel setting memory and many external control interface such as RS-232C, USB, Handler/Scan/EXT IO or GPIB, greatly elevates the GOM-805 milliohm meter’s convenience on practical applications. The GOM-805 also includes various drive modes and Dry circuit for contact resistance measurement applications.

Product Details
IN68228300IG
  • GPIB Functionality
  • 1 - User Manual on CD
  • 1 - Quick Start Guide
  • 1 - Programming Manual
  • 1 - Power Cord
  • 1 - Output terminal cover
  • 1 - Type A-B USB Cable (GTL-246)
  • 1 - Analog connector plug set (GTL-308)
  • 1 - Chassis connection wire.

Product Features:

  • 50,000 counts
  • 3.5” (320 x 240) TFT LCD display
  • High accuracy of 0.05% precision
  • 1Amp test current, 1µΩ resolution
  • Fast measurement of 60 readings per second
  • Four wire resistance measurement
  • Temperature compensation measurement function
  • Delayed measurement
  • 20 sets of panel setting memory
  • Dry circuit (GOM-805 only)
  • Drive modes: DC+/DC-, Pulsed, PWM, Zer Ohms (GOM-805 only)
  • Interface: USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB
