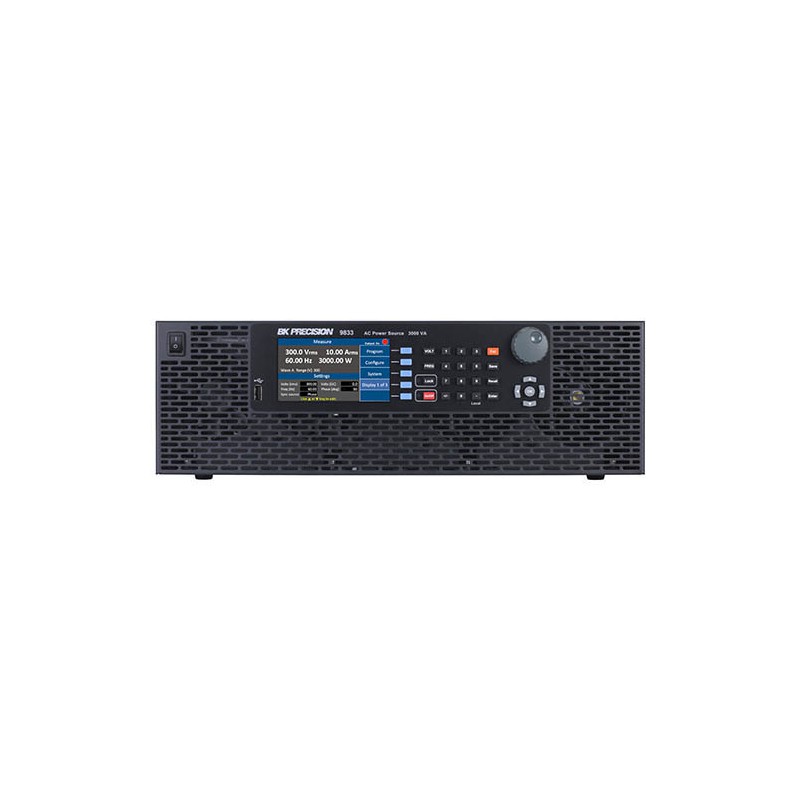

BK Precision 9833

Name: BK Precision 9833
Brand: BK Precision
SKU: BP28067865BP
Price: 5452.00 USD
Availability: InStock

Reference BP28067865BP

Brand BK Precision

Programmable AC Power Source, 300V/30A, 3000 VA, 190-250 VAC Line Input

$5,452

Quantity

Description

BK Precision 9833 Programmable AC Power Source, 300V/30A, 3000 VA, 190-250 VAC Line Input is a single-phase AC power source with an AC power of 2000 VA and an operating frequency range of 45-500 Hz. The low harmonic distortion meets the IEC 61000-3-2 standard, making this model ideal for pre-compliance testing. A variety of power line disturbances can be simulated using pulse, step, and list modes. Users can select from 30 built-in THD waveforms or generate user-defined harmonic waveforms with the included PC software. The instrument's capability can be extended further, by connecting an arbitrary waveform generator to the analog input.

The user interface features a numeric keypad, rotary knob, navigation keys, a 4.3-inch color LCD display capable of displaying 12 measurements simultaneously and a USB host port. All measurements and setting values are concurrently displayed on the screen including a graphical display of the output waveform. Additionally, LAN, USB, GPIB and RS232 interfaces are all standard. These AC sources can also be controlled from a standard web browser via built-in web server.

Intuitive User Interface

The numeric keys and rotary knob provide a convenient interface for setting output parameters quickly and precisely. All measurements and setting values are concurrently displayed on the screen including a graphical display of the output waveform. Up to 100 instrument settings can be saved and recalled to and from internal storage memory. Save screenshots and save/recall settings to the USB host interface.

Flexible Operation

Adjustable AC/DC voltage levels, frequency and timing parameters allow for simulation of voltage drops and periodic power surges and sags. Step, pulse and list modes are used to generate complex power line disturbance simulations. Select from built-in waveforms or generate user-defined waveforms with the included PC software or by connecting an arbitrary waveform generator or the instrument's analog input.

ElectriKit App

A helpful tool for electricians, technicians, engineers, students, hobbyists and anyone dealing with electrical power.

Download ElectriKit for Apple Devices

Key Features

Calculate DC power and single- or three-phase AC true power, reactive power, and apparent power
Delta-wye transformation calculator
AWG size calculator to determine wire diameter, cross-sectional area, and resistance
Voltage drop calculator
Ampacity table for insulated conductors per NEC Table 310.16
Horsepower calculator for AC/DC motors
THD harmonics calculator

Product Details

Reference BP28067865BP

1 - AC Power Cord with Input Connector
1 - Test Report
1 - Certificate of Calibration

Product Features:

Output Voltage: 300V
Output Current: 30A at 0-150V, 15A at 0-300V
Max Power: 3000VA
Input Voltage: 190V to 250V, 47 Hz to 63 Hz
Dimensions (WxHxD): 16.5 in. x 5.2 in. x 22 in.
Low total harmonic distortion meets the IEC 61000-3-2 standard
Measures Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
30 built-in THD waveforms
Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
Step, List and Pulse modes for generating power line disturbance (PLD) simulations.
List mode supports 10 user-defined programs with up to 100 programmable steps
Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
Comprehensive protection modes OVP, OCP, OPP, OTP, fan failure, output timer and key lock
LabVIEW™ driver and application software with soft panel for remote control available
Control AC source from standard web browser via built-in web server
