Description

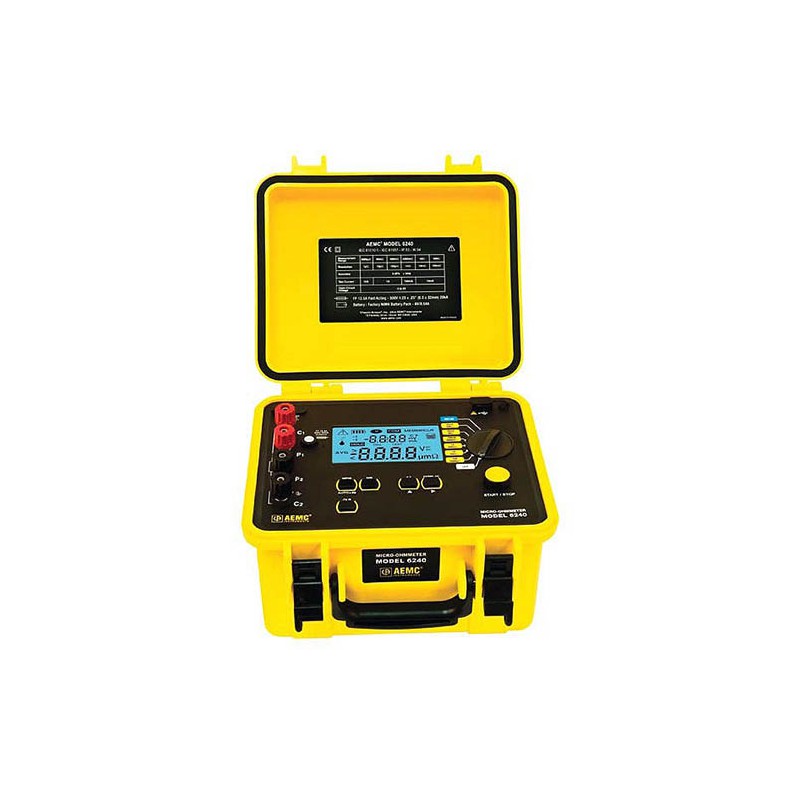

The AEMC 6240 (2129.80) 10A Micro-Ohmmeter is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%.
Resistance measurements are automatically calculated from 1µΩ to 400Ω with resolutions down to 1µΩ. The Model 6240 has selectable test currents of 10A, 1A, 100mA and 10mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.
The included DataView software allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.
Product Details
AE04734653A6
- 1 - 10A Micro-Ohmmeter (Model 6240)
- 1 - Large Tool Bag
- 2 - Kelvin Clips (10 ft, 10A-Hippo)
- 1 - US 115V Power Cord
- 1 - Pad with Measurement Results Forms
- 2 - Spare Fuses (12.5A)
- 1 - NiMH Rechageable Battery Pack
- 1 - USB Drive with DataView Software & User Manual
Product Features:
- Performs reliable low resistance measurements from 5µΩ to 400Ω
- Six selectable resistance ranges: 4000µΩ, 40mΩ, 400mΩ, 4000mΩ, 40Ω, 400Ω
- Four-terminal Kelvin resistance measurement eliminates test lead resistance
- Selectable test currents of 10A, 1A, 100mA and 10mA
- ±0.25% basic accuracy and resolutions down to 1µΩ
- Reverse polarity switch on front panel
- Overload and input fuse protection
- Automatic decimal point and zeroing
- Large terminals accept banana plugs and spaded lugs
- Rechargeable NiMH battery with internal charger (110/220V)
- Easy-to-read multifunctional backlit display
- Includes DataView software for data storage, real-time display, analysis and report generation
- Manufactured to IEC/EN 61010-1 category III 50V, Pollution Degree 2
