Gauge Pressure Calibrator, 200 kPa, Standard/Metric, 1/4 in. NPT Female Thread

$5,287

Quantity

Description

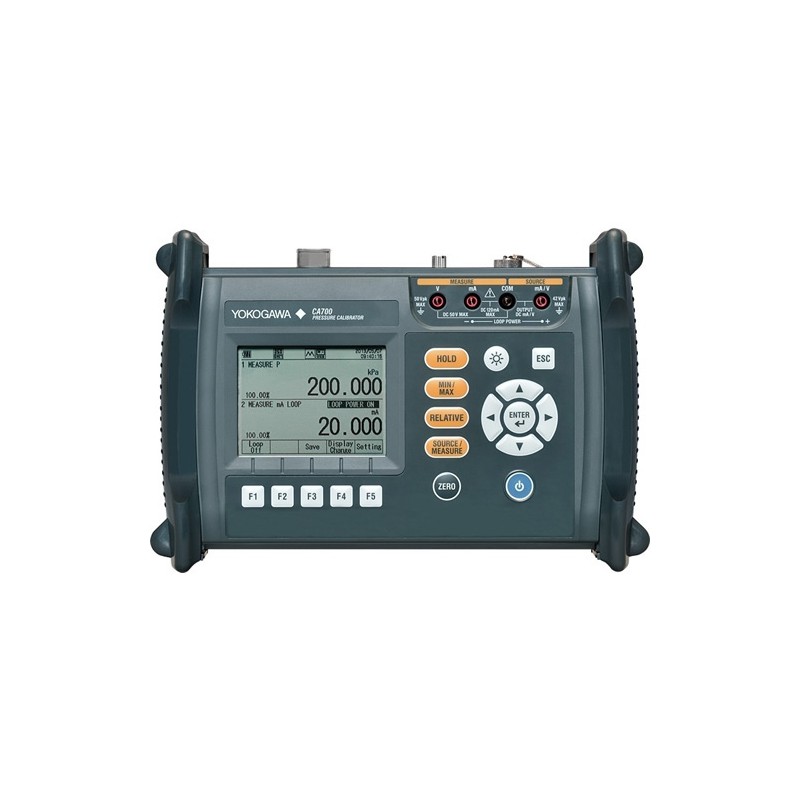

The Yokogawa CA700-E-01-U2-P2 Gauge Pressure Calibrator, 200 kPa has a basic accuracy of 0.01% of reading on pressure measurement and 0.015% of reading on Current/Voltage source/measurement. It also boasts a resolution and pressure range.

Pressure is one of the most important and commonly measured forces in industrial plants and sites. Other commonly measured forces, such as temperature, flow and level, can all be derived from pressure. Because of this, pressure transmitters are especially crucial for maintaining the health and safety of plant operations. For a pressure transmitter to perform reliably, periodic calibration of these devices is absolutely necessary.

Product Details

Reference YO85804782YC

1 - Gauge Pressure Calibrator, 200 kPa
1 - Set of Lead Wires with Alligator Clips (Red and Black/1.7m), 98064
6 - Alkaline AA Batteries
1 - 1/4 in. NPT Male Thread to 1/8 in. NPT Female Thread Conversion Connector
1 - Accessory Case, B9108XA
1 - Shoulder Strap
1 - User Manual
1 - Startup Guide

Product Features:

Supports customizable, bulit-in "AS-FOUND" and "AS LEFT" routines
Can be used as a data logger or USB storage
Integration with FieldMate 3.03 and pressure modules for all-in-one calibration system
Utilizes same high quality Yokogawa sensor technology
Different pressure ranges allow maximum resolution
Reliable, rugged, and battery-powered
IP54 dust and water proof case for harsh enviroments
Light-weight and built-in stand
Pressure type: Gauge
Measurement range:
Positive pressure: 0 to 200 kPa
Negative pressure: -80 to 0 kPa
Measurement display range: To 240.000 kPa
Resolution: 0.001 kPa
Measurement accuracy (6 months after calibration/Tested after zero calibration):
Positive pressure 20 to 200 kPa: ±(0.01% of reading + 0.003 kPa); 0 to 20 kPa: ±0.005 kPa
Negative pressure: ±(0.2% of reading + 0.080 kPa)
Measurement accuracy (1 year after calibration/Tested after zero calibration):
Positive pressure 20 to 200 kPa: ±(0.01% of reading + 0.010 kPa); 0 to 20 kPa: ±0.012 kPa
Negative pressure: ±(0.2% of reading + 0.090 kPa)
Response time: 2.5 s or less
Allowable input: 2.7 kPa abs to 500 kPa gauge
