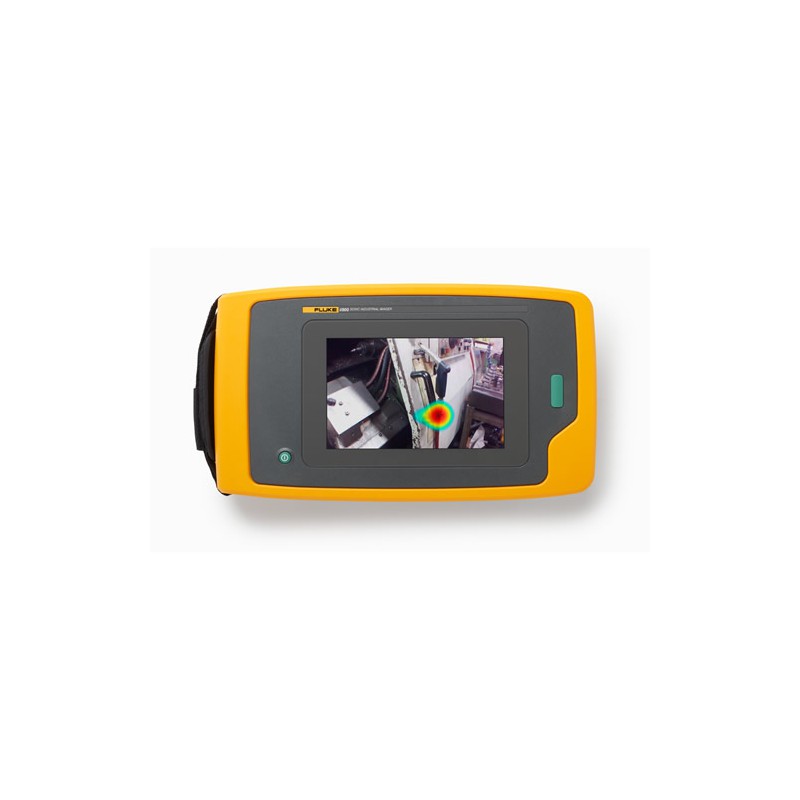

Fluke II900

Name: Fluke II900
Brand: Fluke
SKU: FL41605596FI
Price: 17901.00 USD
Availability: InStock

Reference FL41605596FI

Brand Fluke

Industrial Acoustic Imager

$17,901

Quantity

Description

Fluke ii900 Industrial Acoustic Imager is designed for production facilities that rely on compressed air. With minimal training, maintenance teams can now inspect for air and vacuum leaks even during peak production periods. Equipped with an array of miniaturized microphones and the ability to easily isolate the sound frequency to identify leaks, background noise can be filtered, and leaks are easily identified. The 7-inch LCD touchscreen overlays a SoundMap™ - a visual map of noise sources using an acoustical array - on an image for quick leak location identification.

Leaks in compressed air, gas and vacuum systems hit both production uptime and the operations bottom line. Previously, the easiest way to identify leaks in a compressed air, gas or vacuum systems is to walk the plant and listen for them or conduct visible inspections with soap and water. However, only the most obvious, largest leaks make a noise detectable by the human ear while smaller leaks can go undetected. According to a study by the Compressed Air and Gas Institute (CAGI) an average compressed air system loses 30 percent of its air through leaks. If you can hear a leak, it is probably costing you thousand of dollars a year. The smaller leaks, the ones you cannot easily hear, or feel are a hidden source of wasted energy and productivity. While this is a known issue, locating air leaks has been a time-consuming and tedious, until now. With the Fluke ii900 Industrial Acoustic Imager your maintenance team can quickly pinpoint the location of compressed air and vacuum leaks, both large and small.

Fluke ii900 Acoustic imager offers a new way to locate issues using sound. It is an intuitive, simple to use tool that can isolate the frequency of leaks or vacuums, even in extremely noisy production environments. A leak location is determined by discerning the direction from which a sound originates by the time delays that occur as the sound passes over an array of microphones. A SoundMap™ is displayed in color over a visual image allowing for easy visual location. With the full array of microphones, it is easy to scan a large area and even capture leaks from a distance.

Product Details

Reference FL41605596FI

1 - ii900 Industrial Acoustic Imager
1 - AC Power Supply and Battery Pack Charger with Universal AC Adapters
2 - Rugged Lithium Ion Smart Battery Packs
1 - USB Cable
1 - Rugged, Hard Carrying Case
2 - Rubber Array Covers
1 - Adjustable Hand Strap and Adjustable Neck Strap

Product Features:

SoundSight™ technology translates sounds into visual representation so that users can easily scan and quickly locate problem areas
Sound-based detection with ultrasonic range: Non-dependant on ambient or air/gas temperatures and useful even in loud noise conditions
Detects any type of leak, including gas, air, steam, or vacuum
Intuitive interface: Train team in matter of minutes; first-time users can find leaks within minutes
Compressed air single most expensive energy source across all factory types
According to US DOE study, compressed-air leaks account for 20% to 30% of total produced capacity in average facility
Do more with existing air compressors and delay capital expense of installing new or additional ones
Inspect 5 to 10 times faster by spotting leaks on-screen via live image
Visualization of leaks means reducing leak detection time and validating subsequent repairs in real-time
Ensure proper air pressure to your pneumatic equipment
Improve reliability in production lines
Report leaks by tagging pictures of exact locations
Make leak detection part of regular maintenance routines

Sensors

Frequency band: 2 kHz to 100 kHz
Detection range: 0.5 m to 120 m (1.6 to 393 feet), depending on ambient conditions
Field of view: 63°± 5°
Nominal frame rate: 25 FPS (number of Frames Per Second (FPS) indicates number of times image on screen is refreshed each second)

Built-in digital camera (visible light)

Field of view (FOV): 63°± 5°
Focus: Fixed lens

Display

Size: 7 in. LCD with backlight, sunlight readable
Resolution: 1280 x 800 (1,024,000 pixels)
Touchscreen: Capacitive (extremely precise and quick responding)
Acoustic image: Yes, SoundMap™ image (visual map of noise sources using acoustical array)

Image Storage

Storage capacity: Internal memory with capacity for 999 picture files and 20 video files
Image format: Blended visual and SoundMap™ .JPG or .PNG
Video format: Blended visual and SoundMap™ .MP4
Video length: Up to 5 minutes
Digital export: USB-C for data transfer

Acoustic Measurements

Measurement range:
- 12.1 dB SPL to 114.6 dB SPL; ±1 dB SPL 2 kHz
- 4.4 dB SPL to 101.2 dB SPL; ±2 dB SPL 19 kHz
- 12.8 dB SPL to 119.2 dB SPL; ±1 dB SPL 35 kHz
- 19.8 dB SPL to 116.1 dB SPL; ±3 dB SPL 52 kHz
- 41.4 dB SPL to 129.0 dB SPL; ±1 dB SPL 80 kHz
- 54.4 dB SPL to 135.5 dB SPL; ±1 dB SPL 100 kHz
Sound pressure level (dB SPL) or acoustic pressure is local pressure deviation from ambient-decible and sound pressure level
Auto max/min dB gain: Auto or manual, user selectable
Frequency band selection: User selectable through user-made presets or manual entry

Software

Ease of use: Intuitive user interface
Trend graphs: Frequency and dB scale
Spot markers: dB level reading at center point of image

Battery

Batteries (field-replaceable, rechargeable): 2 x Rechargeable Li-ion, Fluke BP291
Battery life: 6 hours/battery (product includes spare battery)
Battery charging time: 3 hours
Battery charging system: External dual-bay charger, EDBC 290

General Specifications

Standard palettes: Grayscale, Ironbow and Blue-Red
Operating temperature: -10 °C to 45 °C (14 °F to 113 °F)
Storage temperature: -20 °C to 70 °C ( -4 °F to 158 °F) without batteries installed
Relative humidity: 10% to 95% non-condensing
Size: (H x W x L): 186mm x 322mm x 68mm (7.3 inches x 12.7 inches x 2.7 inches)
Ingress Protection (IP): IP40 (protection against particles 1mm or greater and dripping water)
Warranty: 2 years
Self-diagnostic notification: Array-health test to identify when microphone array needs attention
Supported languages: Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS compliant: Yes
General safety: IEC 61010-1

Applications

Automotive:
- Industrial robots
- Compressed air hand tools
- Vacuum lifting systems
- Truck breaking systems
Manufacturing:
- Compressed air hand tools
- Pneumatic control valves
Food and Beverage:
- Automated packaging
- Vacuum extraction
- Pneumatic control valves
- Postal Service and Logistics Centers:
- Vacuum lifting systems
- Pneumatic actuators
- Automated packaging
Hospitals:
- Oxygen supply systems
- Compressed gases
Transportation:
- Train breaking systems
Utilities (Power Generation):
- Pneumatic control valves
- Hydrogen leaks
Shipyards:
- Compressed air hand tools
- Argon welding
Aerospace:
- Cabin air tightness
Advanced Pharmaceutics (Radiopharmeceuticals)
