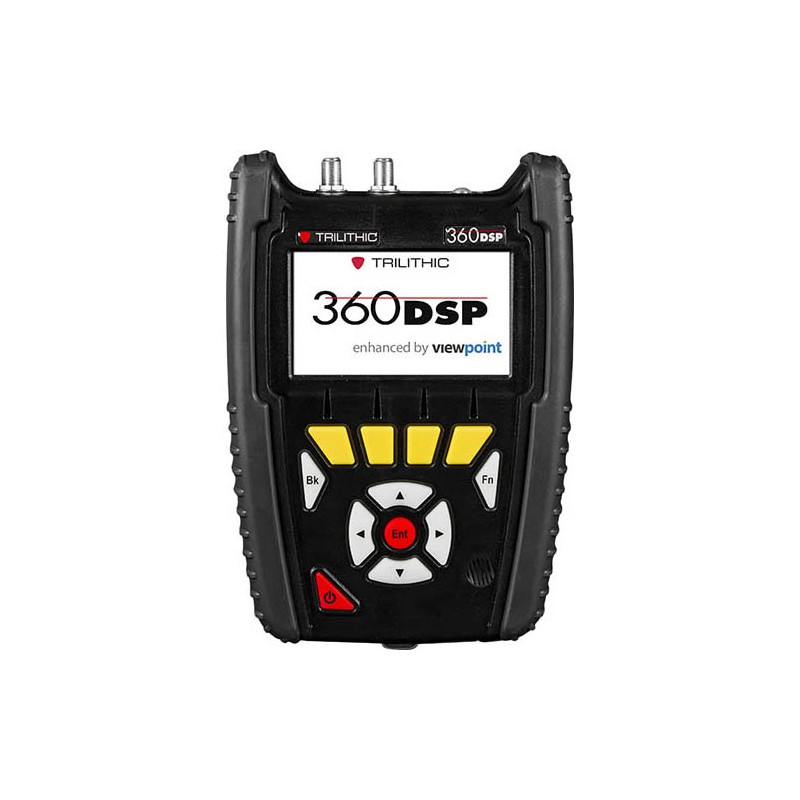

Viavi 360 DSP ADVANCED

VI76745063V3
Viavi

Trilithic Series Advanced Home Certification Meter with DOCSIS 3.1, Frequency Domain Reflectometer, Source Generator, Forward Spectrum Analysis

$1,513
Quantity

Description

Viavi 360 DSP ADVANCED Trilithic Series Advanced Home Certification Meter with DOCSIS 3.1, Frequency Domain Reflectometer & Source Generator, is designed specifically to simplify home certifications. Built from the ground up, tailored specifically for the needs of fulfillment, this meter is ideal for standardizing processes and procedures for installation and troubleshooting. The 360 DSP Advanced Meter features a compact rugged design, intuitive color user interface, and an unparalleled selection of digital and analog channel measurements, including DOCSIS 3.1 OFDM signal analysis.

When testing or troubleshooting within analog, digital or mixed analog/digital transmission systems, the 360 DSP Advanced Meter is the perfect tool for measuring analog and QAM carrier power levels. Additionally, for QAM carriers (including deep interleave), the 360 DSP Advanced Meter provides Hum, Constellation, Equalizer Tap, MER and BER measurement displays. This allows users to quickly analyze 64 and 256 QAM downstream channels for quality verifications or to locate impairments with the meter, all right out of the box.

Viavi 360 DSP ADVANCED Meter performs an extensive set of OFDM signal measurements to enable testing in DOCSIS 3.1 deployments. In addition to average level, peak-to-valley, and in-channel tilt, the meter displays PLC constellation, level, pre/post BER, MER, decoder stress over time, and a summary for the default profile.

With its channel plan scan feature, the 360 DSP Advanced Meter displays the frequency response of the entire channel lineup. This measurement displays a color-coded bar graph of each channel or your favorite channels in the active channel plan. The channel plan scan also includes on-screen markers that can be adjusted to perform a tilt measurement.

Viavi 360 DSP ADVANCED Meter is equipped with a Frequency Domain Reflectometer that determines the distance to cable faults (opens, shorts, splitters, etc.). Events are shown on a distance versus amplitude display, with markers to identify the distance and loss at the source of the reflection. The meter also features a Source Generator, which provides the ability to transmit continuous wave (CW), 16 to 256 QAM, or 4K/8K OFDM carriers within the return band from 5 to 85 MHz with user-adjustable bit error injection.

Viavi 360 DSP ADVANCED Meter comes standard with the ability to display the full return spectrum from 4 to 205 MHz. The spectrum display provides peak measurements, color-coded markers, and delta measurements. This feature also includes adjustable detector modes which are useful for capturing burst transient noise. The 360 DSP Advanced Meter furthermore performs forward spectrum measurements from 5 MHz to 1,250 MHz.

Installation Troubleshooting and Certification

Viavi 360 DSP ADVANCED signal level meter is specifically tailored for fast installation RF signal testing and troubleshooting. The meters comes equipped with all needed analog and digital signal measurements to ensure the highest quality installation-and at a price point that makes it feasible for system operators to outfit their entire fleet.

Designed for installer, contractor and service tech challenges, the 360 DSP Advanced Meter helps simplify decision making and streamline standardization processes and procedures, while improving tech efficiencies and the overall health of the entire system.

Viavi 360 DSP ADVANCED Meter features intuitive, color touchscreen interfaces, simple pass/fail indicators, and autotest apps to streamline basic RF installation and make the installer's job easier. The meter is built with the technician in mind-from the quick charge time to the unique, built-in LED flashlight and glow in the dark keypad for those dark, cramped spaces.

Viavi 360 DSP ADVANCED Meter makes basic RF installation a breeze for installers and contractors. Techs will appreciate the advantages of a quick and efficient device, featuring a flexible and easy-to-operate interface inspired by modern smart devices. The next-gen fulfillment tool comes equipped with powerful troubleshooting tools and simplified autotest apps to perform triple-play tests, set home certifications standards, and measure both Analog and Digital signals. The 360 DSP Advanced Meter also has built-in DOCSIS 3.1 Modem, Ethernet, and WiFi communications capabilities.

Product Details
VI76745063V3
  • 1 - 360 DSP Signal Level Meter
  • 1 - Protective Carrying Case
  • 1 - Shoulder Strap
  • 1 - AC Power Cable (US)
  • 1 - AC to DC Power Adapter & Battery Charger
  • 1 - Touchscreen Stylus with Tether

Product Features:

  • Provides advanced home certification capabilities to simplify installation and troubleshooting
  • 1.25 GHz frequency measurement range
  • Auto-discovery of channel plans
  • Equipped with built-in DOCSIS 3.1 Modem, Ethernet, and Wi-Fi communications capabilities
  • Test results can be easily sent to StrataSync (sold separately) for near real-time views of measurement data
  • Forward Spectrum Analysis feature enables users to view raw forward spectrum traces from 5 to 1250 MHz with DSP spectrum snapshots
  • Analog and Digital Hum feature enables users to measure the amplitude of 50/60 Hz, 100/120 Hz, and low frequency interference present on the video/QAM carrier of a single selected analog or digital channel
  • Frequency domain reflectometer determines distance to cable faults (opens, shorts, splitters, etc.), with events shown on distance versus amplitude display
  • Source generator provides ability to transmit continuous wave, 16 to 256 QAM, or 4K/8K OFDM carriers within return band from 5 to 85 MHz
  • Intuitive, color touchscreen reduces installer entry errors and improves decision making
  • Provides multiple tests in single autotest app, conveniently standardizing tech processes and procedures
  • Equipped with powerful troubleshooting tools to improve overall system health
  • High-intensity LED flashlight ideal for work in cramped, dark spaces

Applications:

  • Return spectrum analysis (4 to 110 MHz)
  • Level, C/N; QAM and OFDM measurement
  • Complete channel plan scan with tilt measurement
  • Advanced, yet simple testing and troubleshooting with channel plan auto discovery
