Phase II UTG-1500

Name: Phase II UTG-1500
Brand: Phase II
SKU: PI81659530PI
Price: 563.00 USD
Availability: InStock

Reference PI81659530PI

Brand Phase II

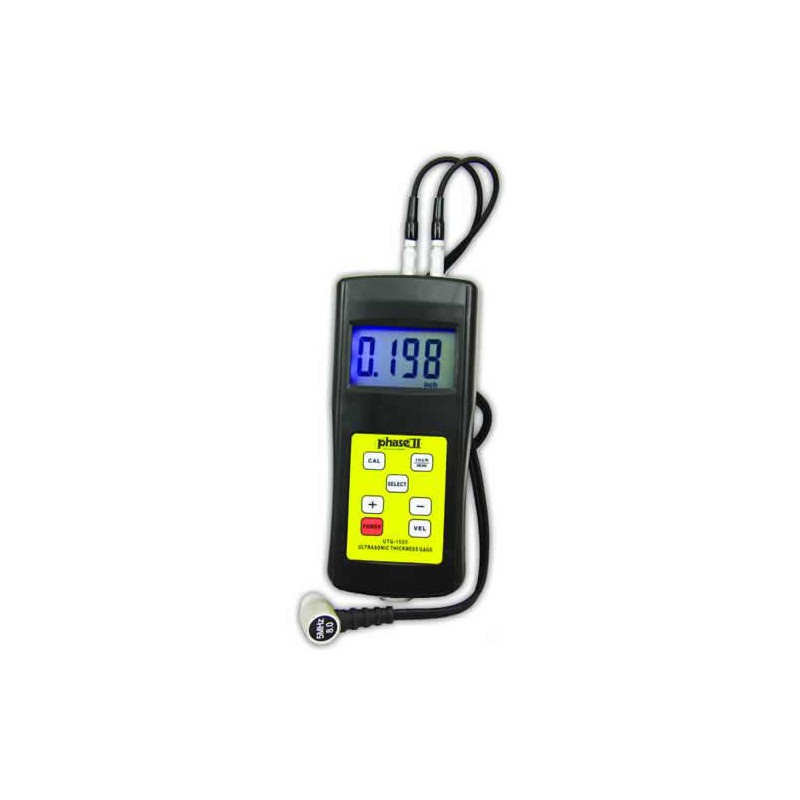

Ultrasonic Thickness Gauge

$563

Quantity

Description

The Phase II UTG1500 Ultrasonic Thickness Gauge is specifically designed for measuring the thickness of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, glass and any other good, ultrasonic wave-conductor, as long as it has parallel top and bottom surfaces. With uses in many areas of industry, the Phase II UTG-1500 can perform precise thickness measurements on various types of raw materials, component parts and assembled machinery. The UTG1500 can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion or erosion.

The Phase II UTG-1500 is extremely easy to use. After a simple calibration to a known thickness or sound velocity, it will give accurate readings in inches or millimeters.

Product Details

Reference PI81659530PI

1 - 5MHz Probe
1 - Coupling Gel
1 - Carrying Case
1 - User Manual

Product Features:

Display type: 3-digit LCD
Resolution: 0.001 in./0.01mm
Measuring range: 0.04 in. to 8.0 in.
Sound velocity range: 3280-32805 ft/s (1000-9999m/s)
Operating temperature: 32 °F to 122 °F
Frequency: 5 MHz
Update range: 4 Hz
Power supply: Four AAA batteries
Battery life: Approx. 250 hours/set
Power consumption: Working current less than 3V
Precise touch and read capabilities
Designed to measure thickness of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor, as long as it has parallel top and bottom surfaces
Accurately displays readings in either inch or millimeter after simple calibration to known thickness or sound velocity
