Extech PRT200

Name: Extech PRT200
Brand: Extech
SKU: EX81227745EP
Price: 152.00 USD
Availability: InStock

Reference EX81227745EP

Brand Extech

Non-Contact Phase Sequence Tester with Visual/Adible Indication, 75 to 1000VAC, 45 to 65 Hz

$152

Quantity

Description

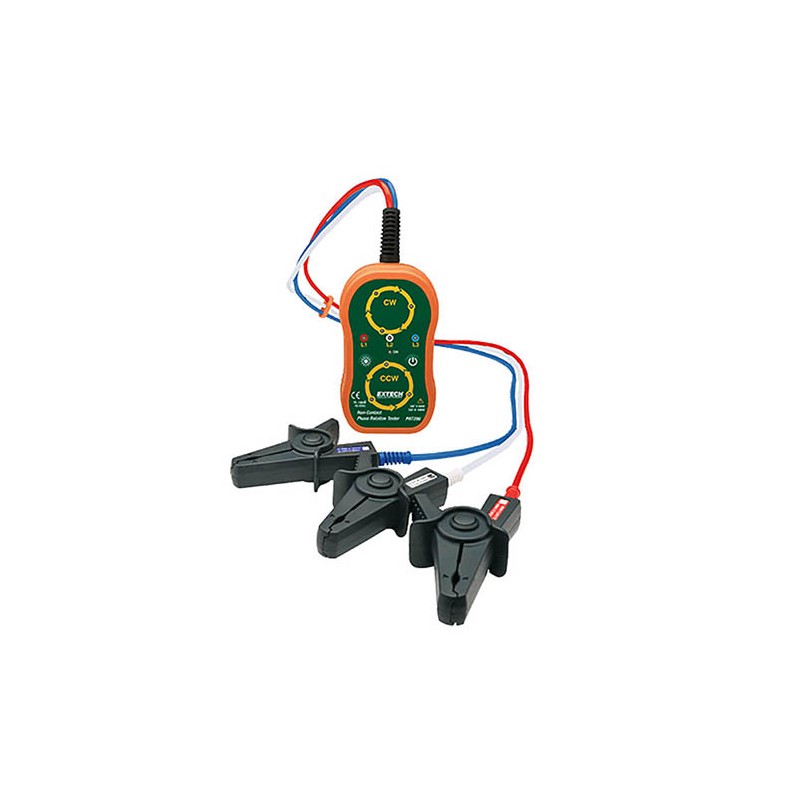

The Extech PRT200 Non-Contact Phase Sequence Tester with Visual/Adible Indication, 75 to 1000VAC, 45 to 65 Hz is a non-contact phase sequence tester that tests up to 1000 VAC with visual/audible indication. The tester has a 45 to 65Hz frequency range, features adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight, low battery warning and fully insulated alligator clips with wide jaws.

Product Details

Reference EX81227745EP

3 - Built-In 30 in. Test Leads with Large Color-Coded Alligator Clips
4 - AA Batteries
1 - Pouch Case

Product Features:

75 to 1000VAC input voltage with 45 to 65Hz frequency range
LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
Durable housing with back cover magnet for attachment to AC distribution panel for easy measurement
Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
Fully insulated alligator clips with wide jaws
Low battery warning
CAT IV-600V safety rating
