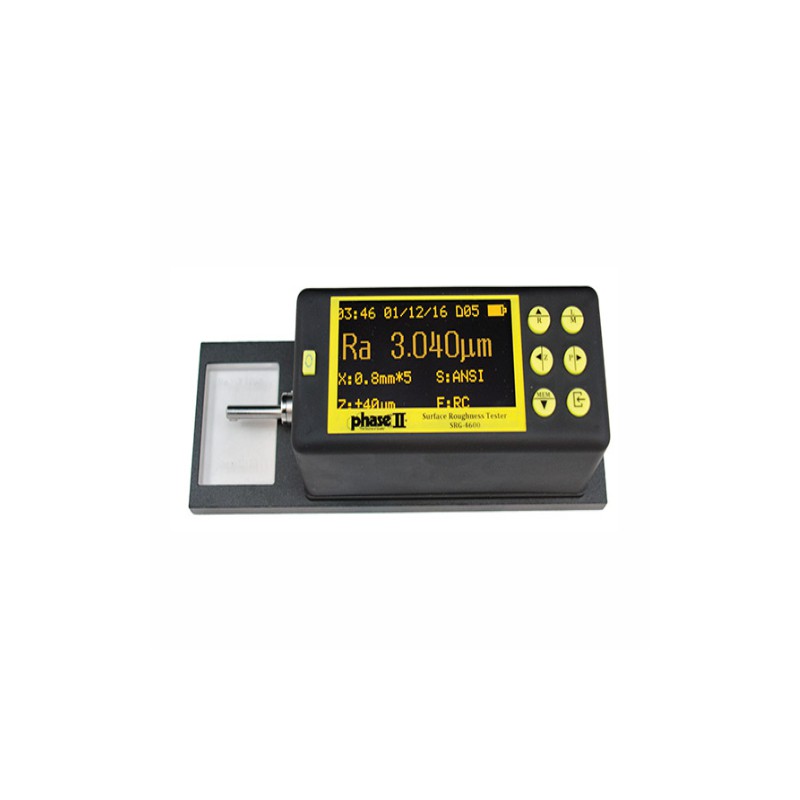

Phase II SRG-4600

Name: Phase II SRG-4600
Brand: Phase II
SKU: PI53507920PI
Price: 1697.00 USD
Availability: InStock

Reference PI53507920PI

Brand Phase II

Portable Surface Roughness Tester Profilometer with 9 Roughness Parameters

$1,697

Quantity

Description

The Phase II SRG4600 Portable Surface Roughness Tester Profilometer with 9 Roughness Parameters will instill the highest level of confidence in your production, shop floor or QC lab. Extended memory and output coupled with many updated useful functions, the SRG-4600 is clearly the leader in ultra accurate surface roughness/profile testing. This device is distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II SRG-4600 is offered via 9 popular surface roughness scales including Ra, Rq (Rms), Rt, Rz and Rmax.

The diamond stylus is hypersensitive and sophisticated enough to allow for a .001 (um) micron display resolution. The Phase II SRG-4600 can utilize an easy interface to allow for changes of in/mm (uin/um), cutoff length, sampling length, parameters, level of test(stylus position), digital filters and more! Surface roughness measurement results are displayed as large characters on the LCD screen for easy recognition.

Battery powered portability allows the SRG-4600 surface roughness tester/profilometer to mobilize productivity throughout the shop. Further, a wireless Bluetooth auto-start comes standard with each unit. Optional Micro Printer is available separately, as well as an optional stand and software.

Product Details

Reference PI53507920PI

1 - Calibrated Reference Standard w/Support Plate
1 - Leveling Plate
1 - Stylus Protector
1 - A/C Adapter
1 - Rugged Carry Case

Product Features:

Measures: Flat, inside and outside diameters
Measures grooves and recessions: wider than 0.16 in. (4mm)
Roughness parameters: Ra, Rz, Rq, Rt, Rs, Rsm, Rmax, Rpc, Rmr
Roughness standards: ISO/DIN/JIS/ANSI
Display resolutions: 0.01um/+/-20 um
0.02um/+/-40 um
0.04um/+/-80 um
Measuring accuracy: Less than or equl to +/-10%
Repeatability: Less than or equal to 6%
Measuring range Ra, Rq: 0.01-40um
Measuring range Rz,Rt, Rm: 0.02-160um
Maximum drive range: 0.7 in. (17.5mm)
Cut-off length: 0.009/0.03/0.09inch (0.25/0.8/2.5mm)
Tracing speeds: speed 1mm/s (sampling length 2.5mm); speed 0.5mm/s (sampling length 0.8mm); speed 0.135mm/s (sampling length 0.25mm)
Sensor: Inductance type
Sensor-stylus: Diamond, radius 5um
Pick up Force: < 4mN
Filter: RC, PC-RC, GAUSSIAN, D-P
Data output: USB
Operating temperature: 41 °F to 104 °F
Weight: 0.97 lb. (440g)
Power: Li-Ion rechargeable battery
Auto shut-off
9 Different roughness parameters
Stylus position indicator
USB output to PC
Large memory
