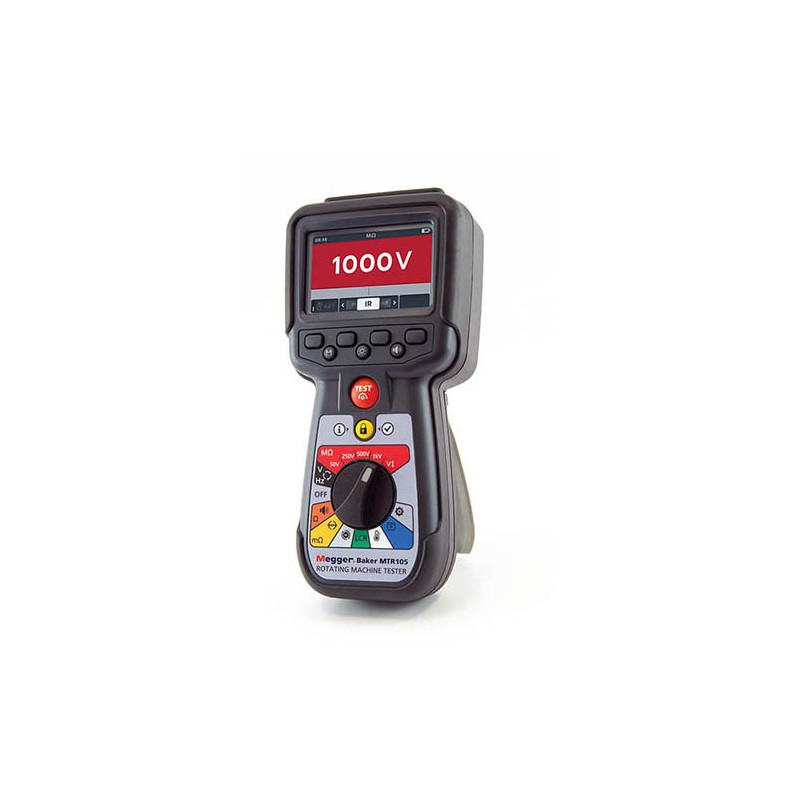

Megger MTR105

ME76406043MM
Megger

1000V Rotating Machine Tester with 3 Phase Insulation Resistance, 4-Wire Kelvin Testing, True-RMS Voltmeter, Continuity, LCR, Motor Direction

$2,125
Quantity

Description

The Megger MTR105 1 kV Rotating Machine Tester is a dedicated Static Motor Tester equipped with Megger's tried and trusted suite of insulation resistance tests (IR), plus all the excellent traditional features and reliability of Megger's testers.

The MTR105 takes the test abilities of Megger's proven IR test instruments adding DLRO four wire Kelvin low resistance test, inductance and capacitance tests to provide a versatile motor tester, all packaged in a robust hand held instrument, which up to now has simply not been available.

Additionally, the MTR105 incorporates temperature measurement and compensation (for IR tests), motor direction of rotation plus supply phase rotation tests.

These new test abilities make the MTR105 a real world, versatile, hand held motor test instrument.

The MTR105 comes in an over-molded case, providing increased protection and robustness, achieving an IP54 weatherproof rating.

Product Details
ME76406043MM
  • 1 - MTR105 Rotating Machine Tester (1010-361)
  • 1 - Hook Strap Assembly
  • 1 - Soft Pouch
  • 1 - Temperature Probe, T type, CAT III 600 V
  • 1 - IR Lead Set, includes:
    • 3 - Grabber Clips (Red, Black & Blue), CAT III 1000 V, CAT IV 600 V
    • 3 - 4 mm Test leads (Red, Black & Blue), 2 m long, 1 end Right Angle & 1 end Straight, CAT III 1000 V, CAT IV 600 V
    • 3 - Test Probes (Red, Black & Blue), Long Reach (100 mm), CAT III 1000 V, CAT IV 600 V
  • 1 - Kelvin Clip Lead Set CAT III 600 V, includes:
    • 2 - Kelvin Clip Leads, 2 m, 4 mm Right Angled Connectors (4), Single (2-core) Cable
  • 1 - MTR105 Calibration Certificate
  • 1 - USB Memory Stick

Product Features:

  • Three phase insulation resistance
  • Temperature correction for insulation resistance
  • Four wire Kelvin low resistance test
  • Continuity and diode test
  • Motor direction of rotation
  • Capacitance and inductance
  • CAT III 600V up to 3000m
  • Full color graphic display with user configurable backlight
  • Simple and easy operation with rotary dial control
  • Guard terminal eliminates any surface leakage current
  • Detachable test leads equipped with interchangeable clips and probes
  • Stores test results for up to 256 motors
  • Easy data download to USB memory device
  • Environmental protection to IP54 against moisture and dust ingress
  • Tough shock absorbing housing with excellent grip

Applications:

  • Production tests for newly manufactured motors and generators
  • Testing of repaired and refurbished motors and generators
  • Monitoring and maintenance of in-service motors (off line) in the field
