Additel ADT936

AD74180263AA
Additel

High Pressure Hydraulic Calibration Pump, 15,000 psi, 1/4 BSP (F) - Oil

$3,351
Quantity

Description

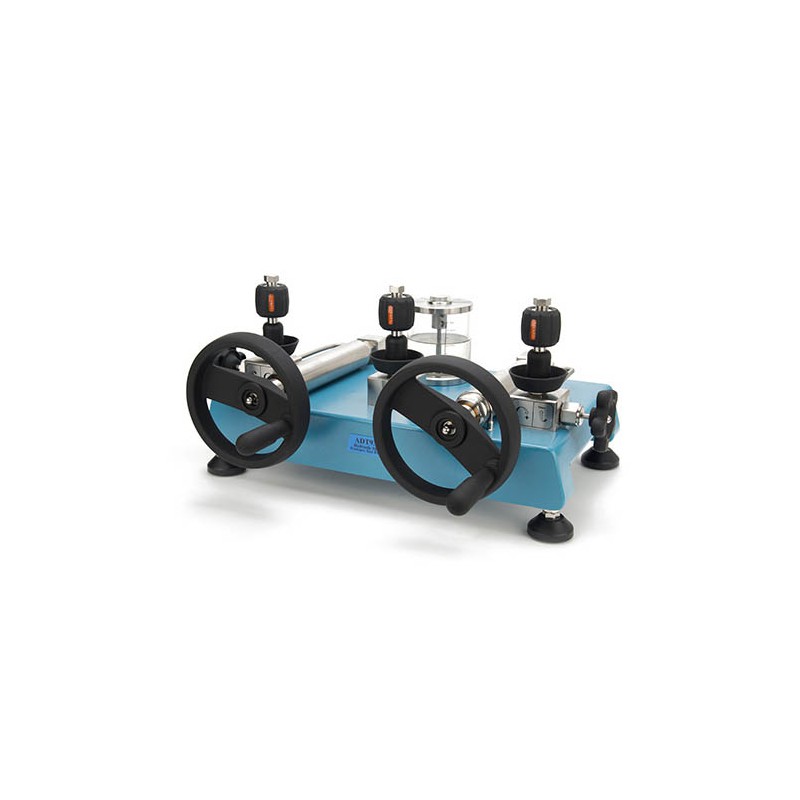

The Additel ADT936B High Pressure Hydraulic Calibration Pump, 15,000 psi, 1/4 BSP (F) - Oil is a hand operated pressure pump designed to generate pressure from 85% vacuum to 15,000 psi (1,000 bar). With the patented screw press technology, high pressures can be easily generated, as well as increased and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check valve (non-returning valve), the ADT936-B avoids the troublesome leakage issues that is usually experienced with hand pumps and allows for minimal maintenance. Three hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The ADT936-B is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the laboratory.

Product Details
AD74180263AA
  • 20 - O-rings
  • 1 - Manual
  • 1 - Bottle Mineral Oil (250 ml)

Product Features:

  • Generated pressure range: 85% vacuum to 15,000 psi (1,000 bar) positive pressure
  • Patented screw press technology, without nonreturning valve inside that is usually used on troublesome hand pumps
  • High pressures can be generated easily, as well as increased and decreased smoothly
  • Patented screw press technology replaces troublesome check valves (non-returning valve) in most hand pumps which practically eliminates leakage
  • Allows easy connecting and disconnecting to test pump without need for PTFE tape or wrenches
  • Media: Oil
  • Reservoir capacity: 420 ml (25.6 in3)
  • Material:
    • Ram/adapters: SS
    • Body: SS/aluminum
    • Seals: Buna-N, PTFE, Copper Alloy, SS
  • Pressure port type: 1/4 BSP female
  • Height: 9.1 in. (230 mm)
  • Base: 20.5 in. (520 mm) x 14.2 in. (360 mm)
  • Piston volume: Low pressure piston: 30 ml (1.8 in3); high pressure piston: 2.5 ml (0.15 in3)
  • Weight: 35.2 lb (16 kg)
  • Warranty: 1 year
