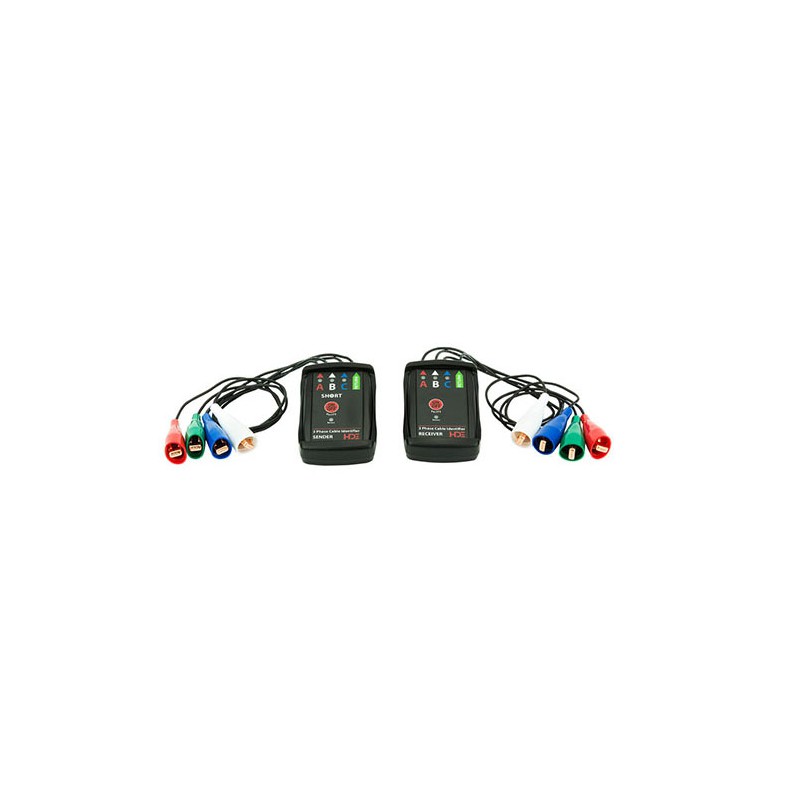

Greenlee 3ID-100
GR49234367G3
Three Phase Cable Identifier with Sender and Receiver, 36V DC, 50/60Hz
Description
The Greenlee 3ID-100 (52074249) Three Phase Cable Identifier with Sender and Receiver, 36V DC, 50/60Hz, identifies the correct phases on long lengths of de-energized and discharged overhead and underground cables. It includes a sender and receiver that are designed to be hand held with or without gloves. Individual lights identify each phase or any phase conductors shorted to neutral. The 3ID comes in a zippered carrying bag and runs on a 9V lithium or alkaline battery in each unit.
Because of its higher test voltage, the 3ID can test long lengths of cable. LEDs on both units indicate that the 3ID units are connected to the same phases on each end of a cable.
Product Details
GR49234367G3
- 1 - Three Phase Cable Identifier, includes Sender and Receiver
- 1 - Soft Carrying Bag (B-5)
Product Features:
- Identifies all three cable phases simultaneously and any shorted phases
- Determines matching phases on long de-energized and discharged conductors
- 36V DC test voltage enables identification of conductors up to 7 miles long
- Easy to use with single test button operation
- Compact, lightweight design with rugged rubberized housing
- Equipped with bright LED lights and alligator clips with heavy-duty boots
- Suitable for both overhead and underground applications
Specifications:
- Operating Frequency: 50/60Hz
- Operating Voltage: 38VDC maximum
- Operating Temperature Range: -40°F to +120°F (-40°C to +49°C)
- Battery: 9V field replaceable alkaline or lithium in each unit
- Weight Each Unit: 1.1 lb (.5 kg)
- Housing Dimensions (W x L x H): 5 x 4.25 x 1.38 in. (13 x 11 x 3.5 cm)
- Test Leads Length: 24 in. (61 cm)
