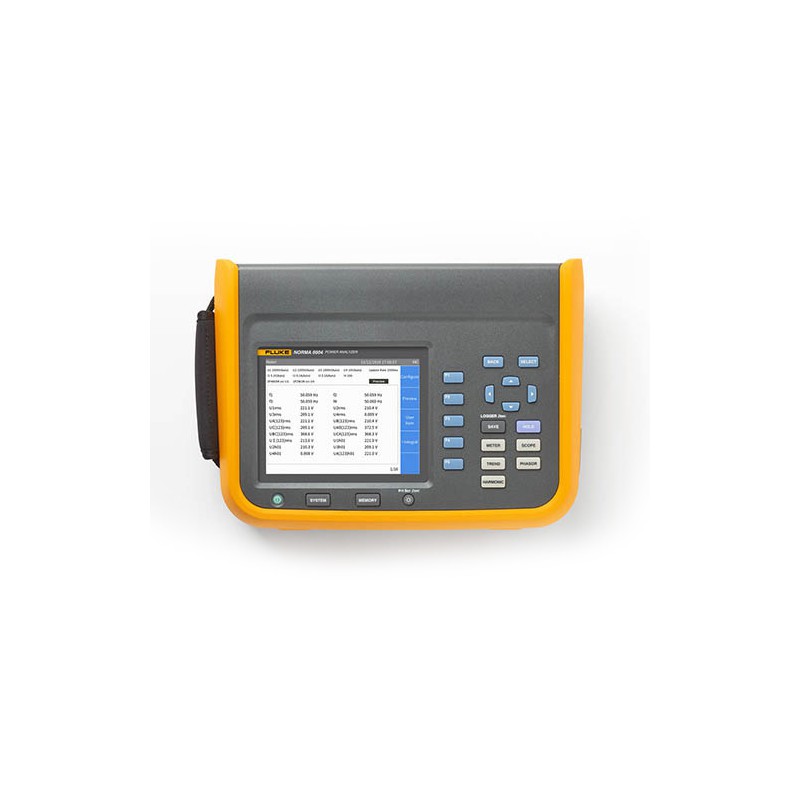

Fluke NORMA 6004

Name: Fluke NORMA 6004
Brand: Fluke
SKU: FL00895113FN
Price: 8696.00 USD
Availability: InStock

Reference FL00895113FN

Brand Fluke

Portable Wideband Precision Power Analyzer with 4 Voltage Inputs and 4 Current Inputs

$8,696

Quantity

Description

The Fluke NORMA 6004 Portable Wideband Precision Power Analyzer with 4 Voltage Inputs and 4 Current Inputs give you more freedom than ever before to make high accuracy power measurements wherever you need to-whether in the lab, or in the field. Designed for portability the lightweight, battery powered Fluke 6000 Series eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.

The NORMA 6004 includes four measurement channels giving it the capability to measure threephase power and DC power simultaneously to enable real-time inverter efficiency measurements under real-world conditions. With the addition of optional measurement accessories (not included), you can even make measurements up to 1,500V DC and 2,000A AC+DC on conductors with a diameter of up to 52mm.

The NORMA 6004's compact, battery-powered design combined with a wideband frequency response makes it easier than ever to make measurements on hard to access systems such as inverter drive systems, DC-AC and AC-DC power conversion systems and electric motors without removing them from service. Making these measurements in the field simplifies the troubleshooting and performance measurement processes without sacrificing uptime, giving you more accurate test results that will enable you to discover whether your loads are operating as effectively and efficiently as they should be.

Product Details

Reference FL00895113FN

1 - Power Supply Adapter (18V DC, CAT IV 600V Adapter)
1 - Power Line Cord
1 - Mains Adapter Set
3 - 1.5m Red Test Leads
3 - 1.5m Black Test Leads
6 - 1.5m Blue Test Leads
3 - Red Alligator Clips
3 - Black Alligator Clips
6 - Blue Alligator Clips
1 - USB (mini B) Cable
1 - RS-485/Synchrony Adapter (3.81mm, Black, 3-pin)
1 - Speed/Torque Adapter (3.81mm, Black, 6-pin)
1 - USB Flash Drive for PC SW and User Manual
1 - Soft Case
1 - Getting Started Manual
1 - Product Warranty Card
1 - Statement of Calibration Practices

Product Features:

Large, bright display
Compact, lightweight, easy to carry
Highly portable and easily installed in tight spaces, only 9.6 cm thick.
Operate continuously for up to 10 hours without external power supply using 5000mAh Li-ion internal battery
Measure CAT IV 600V, CAT III 1,000V safety rating environments
Measure three phase power and DC output power simultaneously
Direct and probe/clamp inputs
4 channels, with voltage and current inputs on each channel
0.1% accuracy, 500kHz bandwidth, 200ks/s sample rate so users can rely on the power conversion system measurements they take no matter what distortion may be present.
Simplified user interface with keypad and context based function keys
USB and RS485 interface and open communication protocol for easy system integration and software platform flexibility
Combine two analyzers to enable simultaneous measurement of multiple circuits for even more troubleshooting capability, configurable to 6 or 8 channels using dual analyzer synchronization
FFT function for graphical spectrum up to 100kHz
View critical data in the field on the main display: Meter, Waveform, Harmonics up to the 100th, Vector and Trend
Ensure high common-mode rejection and allow flexible configurations according to measurement requirements using the electrically isolated channels
User adjustable measurement rate from 100ms to 1s with continuous logging via 32GB of onboard storage
Easy in-field set up using integrated front panel or remote PC connection (USB or RS485)
Online measuring, data download and analysis with included Fluke Power Analyzer Software
Full remote control of connected instrument using Fluke Power Analyzer Software and local USB or long-distance RS485 connection

Applications

Renewable engergy: Maintenance of frequency generators/transducers in wind power farms/solar power farms
Electrical vehicles: Electric vehicles charging stations, batteries, inverters, motor efficiency testing and performance evaluation test
R&D, education and 3rd party labs: In-field power and efficiency evaluation of inverters, variable voltage, variable frequency equipment, power, harmonics and transformer load loss tests
Manufacturing: Used in production environment for product inspection of industrial electrical appliances and equipment, mechanic products and frequency conversion devices
