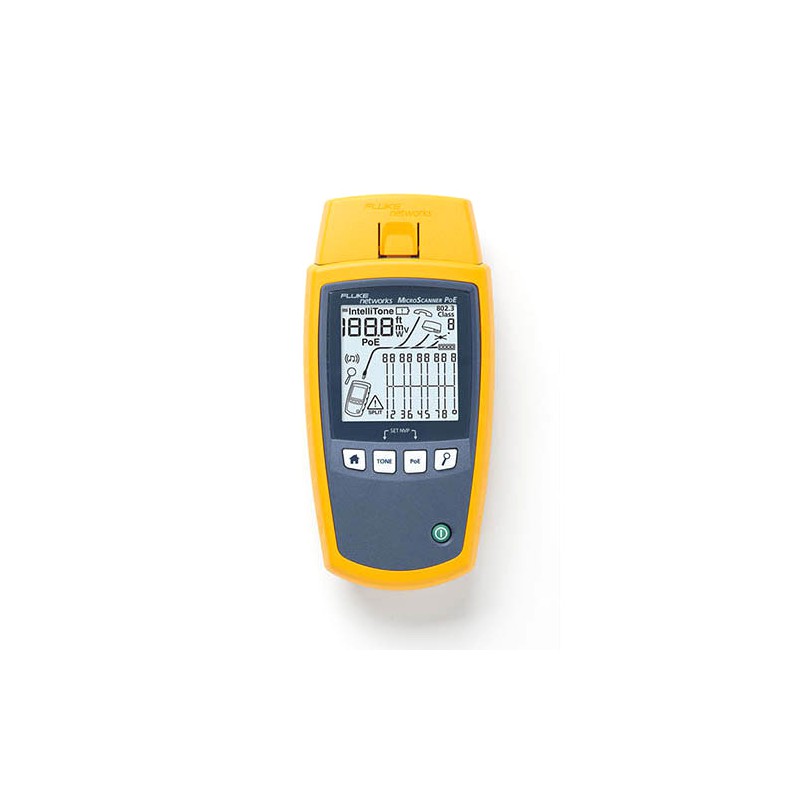

Fluke Networks MS-POE

FN64512705FN

MicroScanner Copper Cable Verifier and PoE Tester, RJ-45 Category 5-6A Ethernet, Power over Ethernet PSE Devices

$536
Quantity

Description

Fluke Networks MS-POE Microscanner2 PoE cuts through the confusion of your PoE installation by providing swift and simple PoE verification. The MSPOE detects the available PoE class (0-8) in accordance to the latest PoE standards and displays the voltage from passive PoE sources. Everything cable technicians need to know, including available services (up to 10G Ethernet), cable length, wiremap, cable ID, and distance to fault are all shown on the LCD screen. Built-in Intellitone digital and analog toning precisely locates virtually any cable or wire pair -even on active networks. The ergonomic design features sleek rubber over mold to enhance grip and ruggedness.

Fluke Networks MS-POE finds common errors and switch power capacity. Cables often fail in harsh industrial environments where cables are exposed to vibration, extreme flexing, moisture, expansion and contraction from temperature change. Failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired. MicroScanner™ PoE performs continuity tests on all wires in a few seconds and displays results graphically so you can see opens, shorts, and cross wires. It also reports which end of the cable has a problem and reports the distance to an open connection within the cable.

Fluke Networks MS-POE also allows for easy installation/maintenance on IT, Security, PoE lighting, Ethernet based HVAC devices and IP based Building Automation systems. Troubleshoot quickly and easily with the oversized backlit LCD screen that displays clear results in bright light or complete dark with intuitive icons, and support of Class 1 to 8 PoE.

Product Details
FN64512705FN
  • 1 - Detachable wiremap adapter
  • 1 - User manual
  • 2 - AA alkaline batteries
  • 1 - Carry pouch
  • 1 - One-Year warranty

Product Features:

  • Copper cable verifier with swift and simple PoE testing for ethernet powered devices such as VOIP phones, cameras, lighting, 802.11n WAPs, detects voltages from active 802.3at/af/bt, PSE sources, negotiates and solicits PoE, Cisco UPOE, and PoH from active sources at the hardware or link layer with LLDP, shows maximum class of power available and voltage to 90W, Ethernet Alliance EA8 Certified
  • Includes MicroScanner POE (Power over Ethernet) cable verifier with detachable wiremap adapter, Getting Started Guide (10 languages), 2 AA alkaline batteries, and carry pouch, one year warranty
  • Oversized backlit LCD screen displays clear results in bright light or complete dark with intuitive icons, supports Class 1 to 8 PoE, detects network switch speed capabilities up to 10G Ethernet, cable length, wiremap, cable ID, and distance to fault, detects POTS
  • Test voice/data/video cables with integrated RJ45 which support low-voltage testing with no need for adapters, ensures high quality installations and quick troubleshooting in active network environment, measures length (460m or 1500 feet with resolution to 0.3m or 1 foot), wiremap to TIA-568A/B standards, remote ID locators (sold separately)
  • Rugged and ergonomic easy-grip rubber design, locates virtually any cable or wire pair with IntelliTone digital and analog toning, probe sold separately
