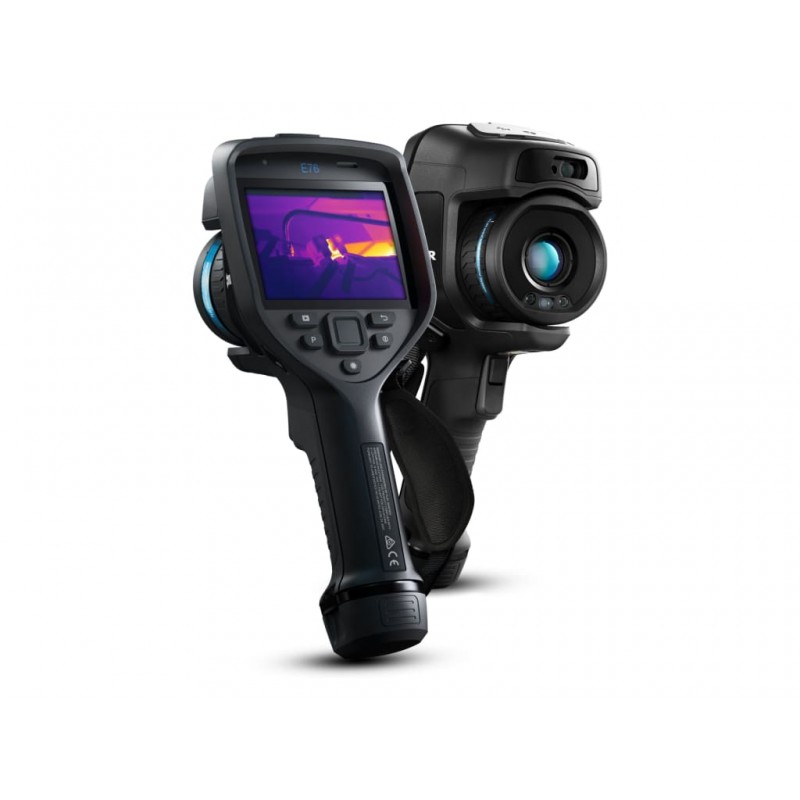

FLIR E76 with 24 Degree Lens

The new FLIR Exx series of thermal imagers features FLIR’s MSX technology and is available in several resolutions:

• E54 - 320 x 240
• E76 - 320 x 240
• E86 - 464 x 348
• E96 - 640 x 480

AutoCal lenses

E76, E86, and E96 cameras are compatible with all of FLIR’s interchangeable AutoCal lenses. The camera automatically recognizes when a new lens is attached and launches a wizard to begin auto-calibrating the camera with the lens-no need to send the camera in for service. This helps ensure the camera always produces high quality images and precise thermal measurements.

What lens do you need?

14°, 29 mm lens: this telephoto lens has a narrow field of view for precise focus and crisp imaging of distant targets.

24°, 17 mm lens: often considered the “standard” lens, the 24° × 18° field of view allows users to remain a safe distance from energized equipment (e.g. 3 m/6.6 ft) while still obtaining a crisp focus on smaller targets.

42°, 10 mm lens: this wide-angle lens captures the largest field of view for imaging buildings, roofs, or other areas where it’s important to gather the most information in a single image.

The Exx series and FLIR Thermal Studio Pro

Empowered with reporting solutions to streamline inspections

Exx-Series cameras are the first FLIR models to come with its exclusive Inspection Route camera option automatically enabled in the camera.

Designed for thermographers who regularly inspect large numbers of objects over the course of a day, FLIR Inspection Route guides the user along a pre-defined route of inspection points so they can collect images and data in a structured manner.

The route begins in FLIR Thermal Studio Pro software, where users build their plan using the Route Creator plugin. They can include as many inspection targets as needed and organize them for maximum efficiency. Once they export the completed route to the Exx camera, they’re ready to begin the day.

The predefined route guides the user’s on-site movement to each inspection asset, automatically collecting and organizing saved images for a seamless import into FLIR Thermal Studio Pro. By ensuring that nothing is missed and that all inspection results are organized from the start, the suite of FLIR inspection software speeds up inspections, improves organization, and simplifies reporting.
