AEMC 6292  from AEMC
  • AEMC 6292  from AEMC

AEMC 6292

AE43078596A6
AEMC

200A Digital Micro-Ohmmeter Temperature Compensation

$5,525
Quantity

Description

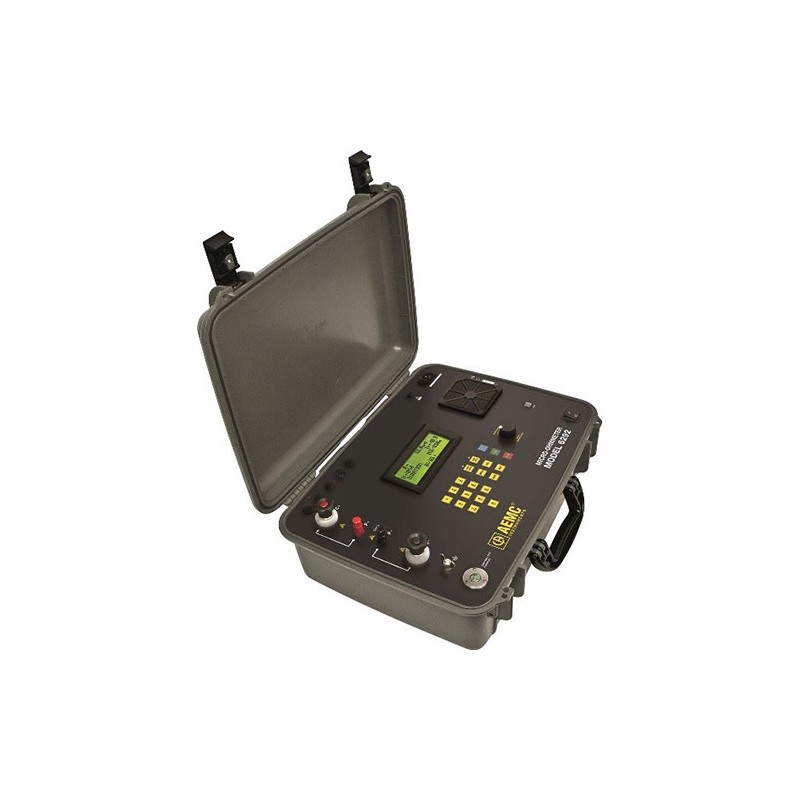

The AEMC 6292 Digital 200A Micro-Ohmmeter is a portable, microprocessor-controlled instrument. It incorporates optimized filters and protection for measurements in electrical substations. The Model 6292 can be used to accurately measure very low contact resistances on high voltage circuit-breakers and switches, busbars, etc., with test currents up to 200A. It employs the 4 terminal-method Kelvin principle to eliminate errors caused by test leads and their contact resistances.

Measurement accuracy is assured through a state-of-the-art signal amplification system, offset-free with high long-term stability. Resistance readings are shown in the alphanumeric display with up to 4½ digit resolution. It allows measurement of resistances up to 1Ω with resolution as low as 0.1µΩ. Test currents may be adjusted by the operator and are displayed on the digital display.

Product Details
AE43078596A6
  • 1 - Set of 20 ft Kelvin test leads w/C clamp
  • 1 - Ground lead (green) with clamp
  • 1 - 5 ft USB cable
  • 1 - 110V US power cord
  • 1 - 12A fuse (5x20mm)
  • 1 - User manual
  • 1 - DataView software

Product Features:

  • Perform tests normally or with both sides of the switch gear connected to the ground
  • Four languages
  • Cooling system to improve the number of sequential tests that can be performed
  • Programmable Test Duration to 120 seconds
  • Direct viewing of stored tests on the instruments display
  • Programmable and manual test current selection
  • Accurately measures low contact resistances with test currents up to 200A
  • Measures resistances up to 1Ω
  • Low resolution of 0.1µΩ
  • Large LCD digital display
  • Stores up to 8,000 test results
  • USB communication interface
  • Direct printout using DataView software and a PC
  • Rugged, light-weight and water-resistant case

Applications

  • Switchgear contact resistance
  • Circuit breaker contact resistance
  • Air frame bonding
  • Rail bonding
  • Pipeline bonding
