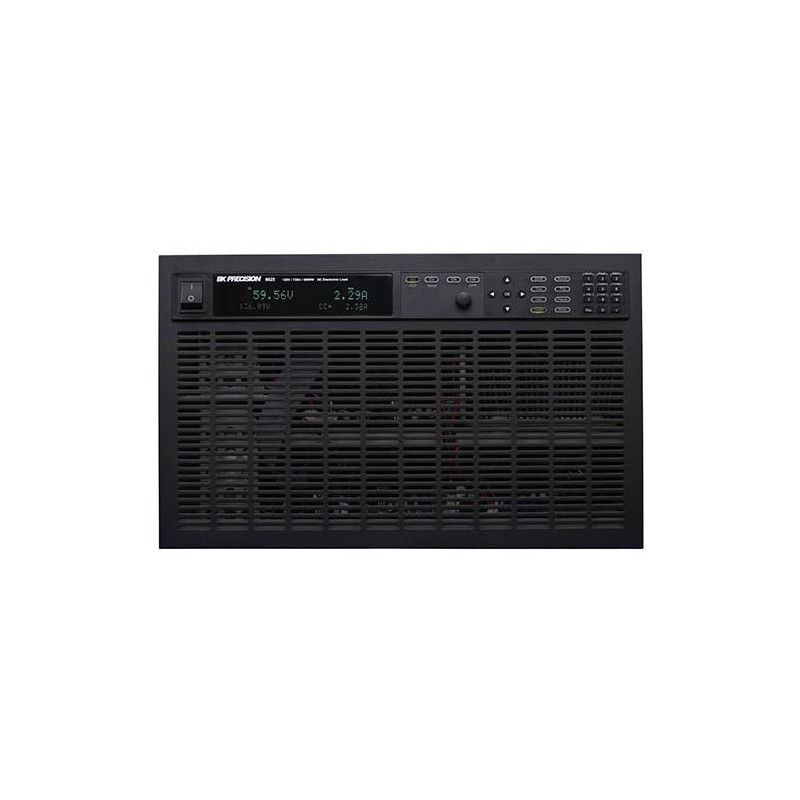

BK Precision 8625

Programmable DC Electronic Load

The BK Precision 8625 120V/720A/6000W Programmable DC Electronic Load provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz and high 16-bit measurement resolution and accuracy, the 8625 DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

The 8625 can operate in constant voltage (CV), constant current (CC), constant resistance (CR), and constant power (CW) mode and be configured to provide a dynamically changing load to the DC source with fast loading switching times. Versatile internal, external, and remote triggering options allow the dynamic load behavior to be synchronized with other events.

Increase productivity by saving your test parameters into any one of the 100 memory areas for quick system recall. All load parameters such as voltage, current, slew rate, and width can be set via the front panel or programmed remotely. The 8625 electronic load provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.

The 8600 Series can measure the rise or fall time from a specified start and stop voltage level of the measured input without the need for an oscilloscope. This function can also be used as an internal timer to count how long the input has been enabled.
