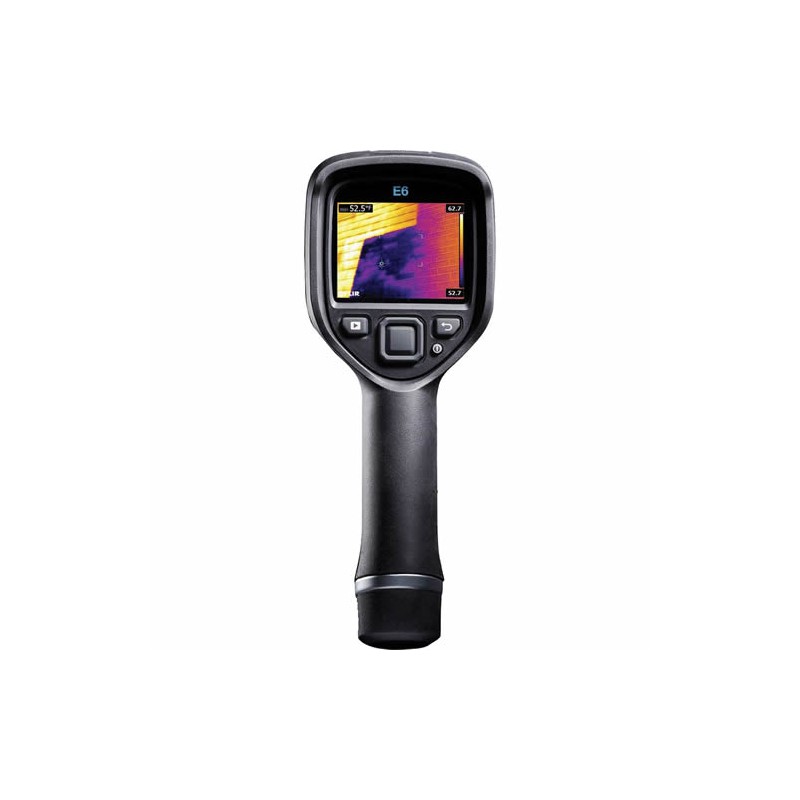

FLIR E6-XT

Name: FLIR E6-XT
Brand: Flir
SKU: FL56573441FE
Price: 1683.00 USD
Availability: InStock

Reference FL56573441FE

Brand Flir

Infrared (IR) Camera with Extended Temperature Range, MSX Technology, and WiFi, 240 x 180, 9 Hz

$1,683

Quantity

Description

The FLIR E6-XT Infrared (IR) Camera with Extended Temperature Range, MSX Technology, and WiFi, 240 x 180, 9 Hz is a powerful, cost-effective, easy-to-use troubleshooting tool for building, electrical, and mechanical applications. The FLIR E6-XT includes MSX technology for extraordinary thermal imaging detail. Wi-Fi connectivity to smartphones and tablets via the FLIR Tools Mobile app makes sharing images and sending reports from any location easier, enabling you to make critical decisions faster. With the FLIR E6-XT camera, you can gain the competitive advantage by providing clients with thermal images that clearly reveal the source of electrical, mechanical, and building-related problems.

MSX Technology

Multi-Spectral Dynamic Imaging (MSX) Technology adds visible spectrum definition to IR images by detecting the edges of objects. Text becomes clearly visible so that you can read a label or identifier within the IR image. This exclusive function provides extraordinary thermal detail that instantly highlights and orients problem locations and eliminates the need to refer back to a visual image for detail.

FLIR Tools Mobile App Features

Import stored images wirelessly
Adjust the temperature span and contrast levels
Change color palettes
Add temperature measurement tools
Play back voice comments
Auto and manual focus
Adjust picture-in-picture, thermal fusion, and IR and visible light image blending
Remote control your FLIR infrared camera
Support for MSX (Multi-Spectral Dynamic Imaging) images
Support for sketch images on both IR and visual with toggling ON/OFF feature
Support for same FOV (field of view match)
Editable text comment

Product Details

Reference FL56573441FE

1 - Hard Transport Case
1 - Battery
1 - USB Cable
1 - Power Supply/Charger with EU, UK, US and Australian Plugs
1 - User Manual

Product Features:

Fully automatic and focus-free
Accurately measure your target using center spot or max/min area box
Navigate easily to on-screen settings, image modes, and measurement tools using simple button controls
Activate MSX to enhance IR images with visual detail for better perspective and interpretation
Records standard JPEGs with embedded temperature data for easy sharing with clients
Wi-Fi connectivity to mobile devices via the FLIR Tools Mobile app
Rapid Wi-Fi or USB image transfer for documentation
Image analysis and editing, plus report creation, through FLIR Tools
Lightweight and well-balanced at just 1.2 lbs (0.575 kg)
Withstands a 2-meter (6.6 ft.) drop test
IP54 Enclosure provides a high level of protection against dust and water
IR resolution: 240 x 180 (43,200 pixels)
Thermal sensitivity/NETD: <0.06°C (0.11°F) / <60 mK
Spatial resolution (IFOV): 3.4 mrad
Field of view (FOV): 45° x 34°
F-number: 1.5
Image frequency: 9 Hz
Focus: Focus-free
Operating temperature range: 15°C to 50°C (5°F to 122°F)
Battery: Rechargeable 3.6 V Li ion battery
Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery charging time: 2.5 hours to 90% capacity in camera, 2 hours in charger
