Fluke 1550C

Name: Fluke 1550C
Brand: Fluke
SKU: FL46951404F1
Price: 3512.00 USD
Availability: InStock

Reference FL46951404F1

Brand Fluke

Megohmmeter/Insulation Resistance Tester, 5kV, > 2 TΩ

$3,512

Quantity

Description

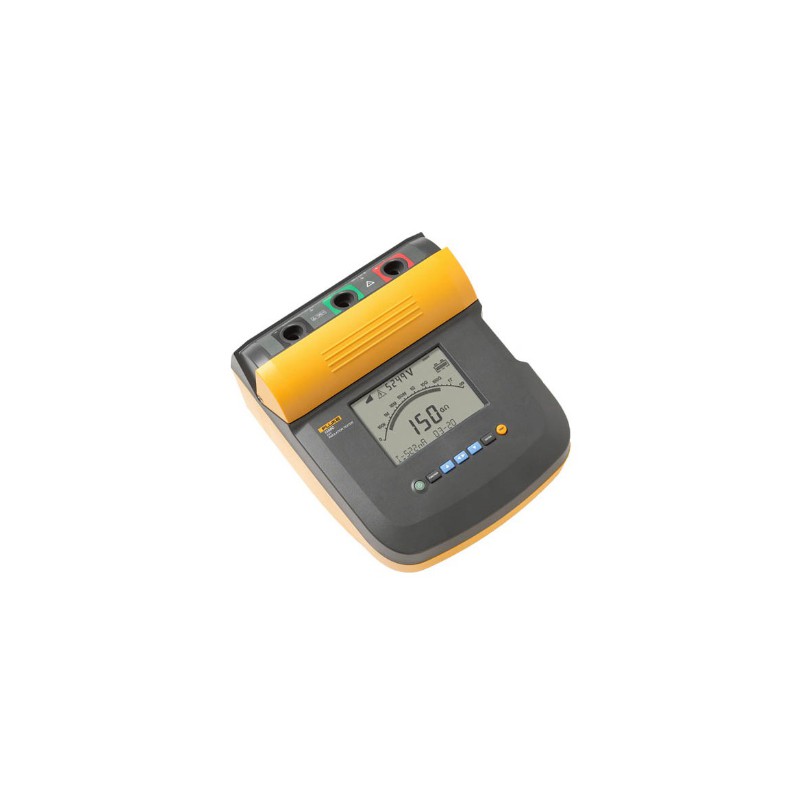

The Fluke 1550C Megohmmeter/Insulation Resistance Tester, 5kV, > 2 TΩ offers digital insulation testing up to 5 kV, making it ideal for testing a wide range of high voltage equipment, including switchgear, motors, generators and cables.

Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a CAT IV 600 V safety rating. With measurement storage and a PC interface, the 1550C is a perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.

Product Details

Reference FL46951404F1

1 - Test Cable with Alligator Clips Set (Red/Black/Green)
1 - Infrared Adapter with Interface Cable
1 - FlukeView Forms Basic Software
1 - AC Power Cord
1 - Registration Card
1 - Soft Carrying Case
1 - Software License Agreement
1 - USB-IR Cable Installation Guide
1 - FlukeView Forms Installation Guide
1 - Quick Reference Card
1 - User Manual CD
1 - User Manual

Product Features:

Test voltages to up 5 kV
CAT III 1000 V, CAT IV 600 V safety rating
Warning function alert for increased user safety
Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
Up to 99 memory locations
Over 750 tests between battery charges
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI)
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Large digital/analog LCD
Capacitance and leakage current measurement
Ramp function for breakdown testing
Resistance measurements up to 2 TΩ
Timer settings up to 99 minutes
