Digi-Sense 98767-00

Name: Digi-Sense 98767-00
Brand: Digi-Sense
SKU: DS51371288DS
Price: 204.00 USD
Availability: InStock

Reference DS51371288DS

Brand Digi-Sense

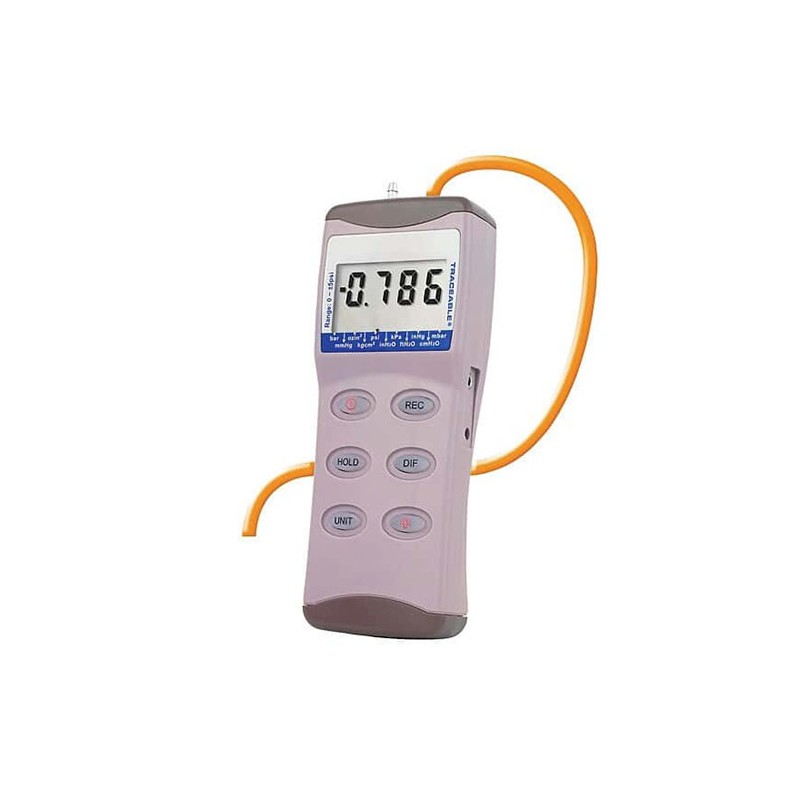

Traceable Digital Manometer with Calibration, ±100 psi

$204

Quantity

Description

The Digi-Sense 9876700 Traceable Digital Manometer with Calibration, ±100 psi can read and display 11 different units of measure, and obtain either gauge pressure/vacuum or differential pressure measurements. The 5/8 in. H LCD backlit digital display is easy to read, even from 6-ft away; its typical response time is 0.5 seconds.

The 98767-00 features an RS-232 output option for data acquisition (not included), REC function with count-up timer for Min/Max readings over a set period of time, and HOLD function to freeze the display.

The 98767-00 is a Traceable Products with an individually-numbered Traceable Certificate, assuring accuracy from the ISO/IEC 17025:2017(1750.01) calibration laboratory, accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement. Each 98767-00 goes through an intense vetting process before it can carry the Traceable name, thus saving both time and money by not having to calibrate it separately.

Product Details

Reference DS51371288DS

1 - Traceable Digital Manometer, ±100 psi
1 - Pressure Sensor
2 - 19 in. Sections of Flexible Tubing
1 - Hard-Sided Carrying Case
1 - Battery
1 - NIST-Traceable Calibration Certificate with Data

Product Features:

Read gauge or differential pressure with one meter
Includes NIST-Traceable certificate from A2LA accredited (1750.01) calibration laboratory
Connect tubing with 1/16 to 3/16 in. (1.6 to 4.8 mm) inner diameter
Obtain fast results with 0.5 second response time
Recall Min/Max readings and zero meter with press of button
Freeze display with HOLD feature
Export data to PC through data acquisition software (optional, not included)
Min Pressure (PSID): -100
Max Pressure (PSID): 100
Max Vacuum (" Hg): -204
Min Vacuum (" Hg): 204
Process Connection: 1/16 to 3/16 in. (1.6 to 4.8 mm) hose barb
Units Of Measurement: psi, mbar, bar, cm/H2O, "H2O, ft/H2O, mm/Hg, "Hg, kg/cm2, oz/inch2, kPa
Display: 3.5-digit LCD, 5/8 in. H digits
Battery Type: 9 V battery (1)OutputRS-232HousingABS plastic
Media CompatibilityAir and clean gasesResolution0.1 psi, 1 in. Hg
Height (in): 7
Width (in): 2 3/4
Length (in): 1
Description: Traceable digital manometer with calibration, ±100 psi
