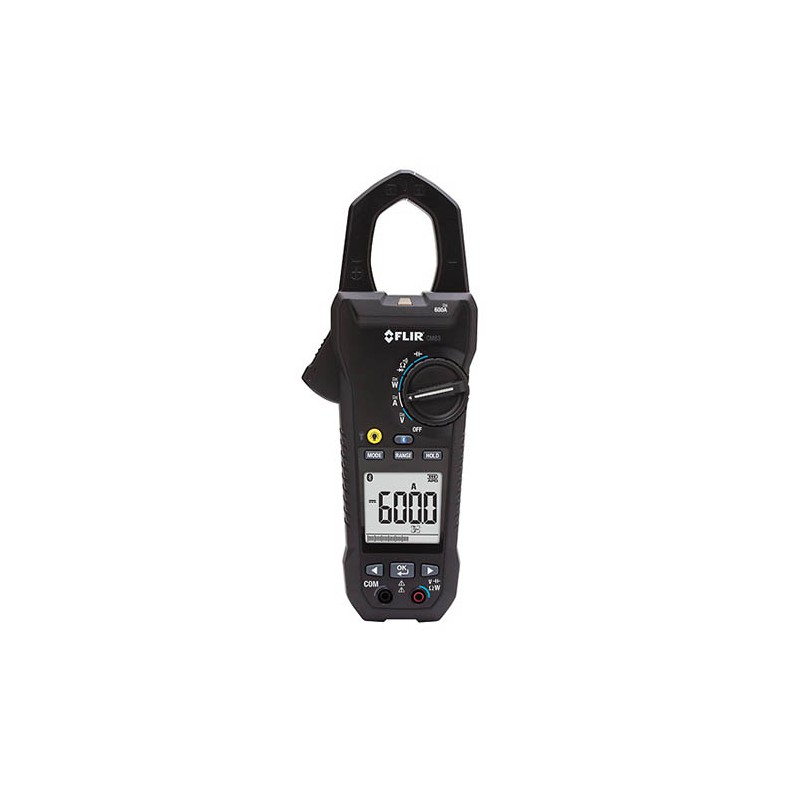

FLIR CM83-NIST

Name: FLIR CM83-NIST
Brand: Flir
SKU: FL42641254FC
Price: 459.00 USD
Availability: InStock

Reference FL42641254FC

Brand Flir

600A AC/DC True RMS Power Clamp, VFD Mode, METERLiNK Technology, NIST Certificate of Traceability

$459

Quantity

Description

The FLIR CM83-NIST 600A AC/DC True RMS Power Clamp, VFD Mode, METERLiNK Technology, NIST Certificate of Traceability is engineered with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters. The CM83-NIST offers additional features including Bluetooth technology to connect compatible mobile devices for remote viewing and sharing, and METERLiNK technology, to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras.

NIST Certificate of Traceability

FLIR's exclusive 12-Point Inspection and Calibration Program uses temperature references that are calibrated annually and traceable to the SP Technical Research Institute of Sweden, and the National Institute of Standards and Technology (NIST).

12-Point Inspection and Calibration Program:

Perform a complete operational check
Image calibration and camera alignment, when applicable
Verify all internal cable and PCB connections
Upgrade internal camera software to latest revisions
Perform minor repairs
Verify and/or calibrate IR image as needed each temperature range for image uniformity
Verify ambient temperature compensation as needed
Re-calibration to ensure it meets factory specification
Perform quality approved acceptance test procedure
Provide certificate of conformance
Provide calibration certificate (optional, extended calibration certificate with measured values)
Clean optics; viewfinder cleaned when applicable
*Does not include parts or labor required to meet calibration standards, nor additional lens/filter calibrations.

Product Details

Reference FL42641254FC

1 - 600A AC/DC True RMS Power Clamp, VFD Mode, METERLiNK Technology
1 - NIST Certificate of Traceability
6 - AAA Batteries
1 - CAT IV Silicon Test Leads
1 - Limited Lifetime Warranty
1 - User Manual (CD)

Product Features:

VFD Mode provides superior accuracy for working on VFD-controlled equipment
Advanced power efficiency and harmonics measurements for system level performance analysis
True RMS voltage and current plus non-contact voltage detector
2 meter drop tested with lifetime warranty
Inrush mode captures fast AC Current spikes during appliance start-up
Phase Rotation testing ensures the motor and power source are aligned
Powerful LED lamps assist with clamping and are bright enough to serve as a primary work light
Remote viewing on smartphones and tablets via Bluetooth plus METERLiNK to wirelessly embed readings into thermal images on compatible FLIR cameras
Large, easy-to-read digits, backlit display and analog bargraph
